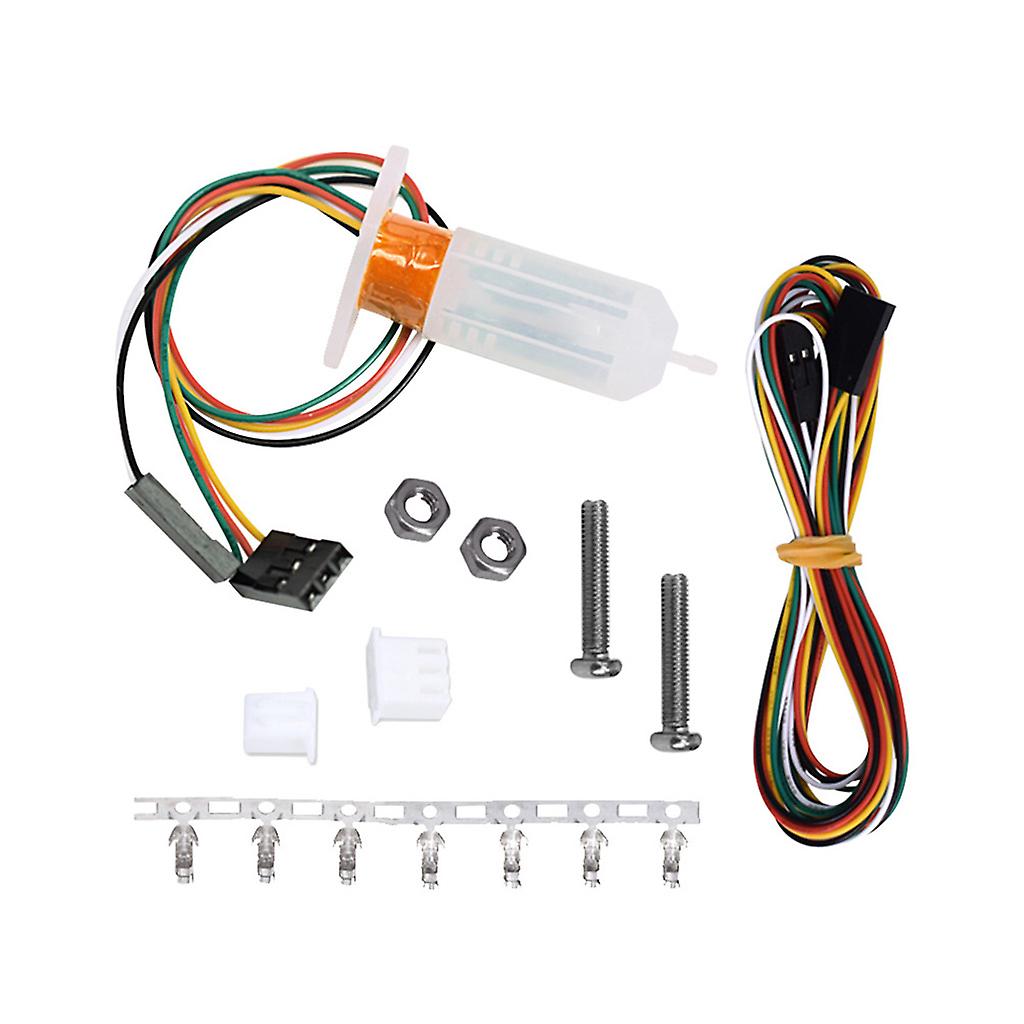

Upgraded Auto Bed Leveling Sensor Kit for 3D Printer Ender3/3s

Features: brand new and high quality It can work with almost any kind of bed material, such as glass, wood, metal, etc. Suitable for Ender-3 / Ender-3s / Ender-3 Pro / Ender 5 / Cr-10 / Cr-10S / Cr 10S4 / Cr 10S5 / Cr-20 / Cr-20 Pro for Ultimaker 2/Kossel/BLV/ Voron/Anycubic and other 3D printers. The automatic bed leveling sensor makes the leveling of the hot bed easier, it can accurately measure the inclination of the bed surface. Using progressively designed solenoids and Hall sensors, high precision is integrated in such a simple structure. In order to make it more humane and bring you a more pleasant printing experience. You can get the position of the dot by touching the dot on the heating bed, and then adjust the Z-AXIS height to compensate during the printing process. Printing can be achieved even if the platform is not flat. Specifications: Name: Automatic Leveling Sensor Color: White Translucent Voltage: 5V Current: 15mA Maximum Current (for crest Value): 300mA for Shell Material: PC Cable Length approx : Short Line: 200mm/7.87in ; Long Line: 1000mm/39.4in Wiring: 3pin: Green: -gnd; Red: +5v; Orange: Signal Wire 2pin: Black: -gnd; White: Zmin Weight: 50g Note: It is not applicable to the upgraded version of the motherboard above 4.2.7. Do not remove or deform the elastic material attached to the thumbtack. After reassembling or adjusting the core, please fix the push pin with lock paint. Pulling/pushing the thumbtack forcefully will damage the for touch sensor and reduce its accuracy. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! Please allow 1-2cm measuring deviation due to manual measurement. Package includes: 1 Set Automatic Leveling Sensor
