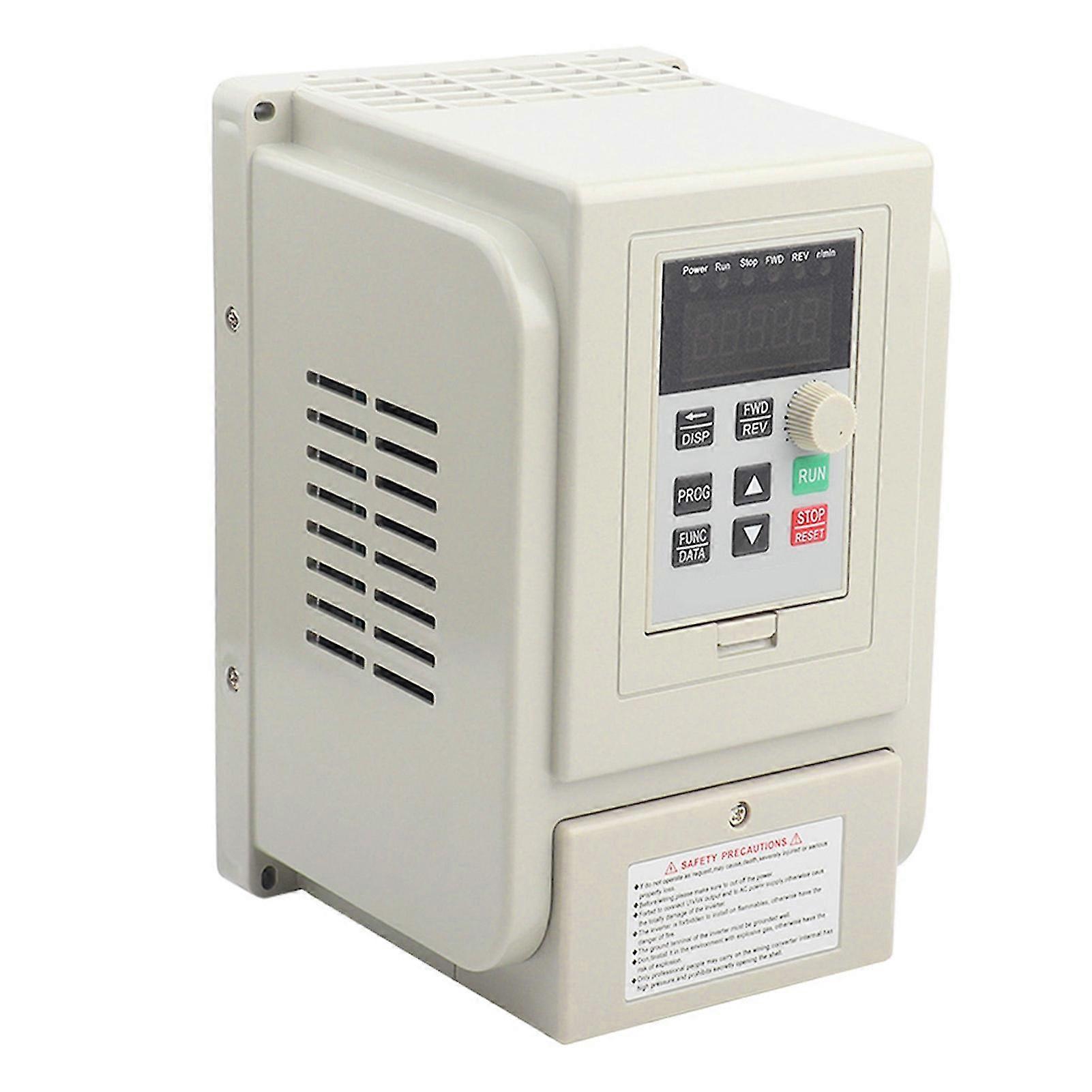

Features: This VFD uses unique control method to realize high moment of force, high accuracy and wide speed regulating range driving, with high performance. It has good anti-trip performance and ability to adapt to rough power, temperature, humidity and dust interference, greatly improved stability. By optimizing PWM control technology and electromagnetic compatibility, it satisfies users' requirement of low noise, low electromagnetic interference. Simple to operate and wire, connect to wires by screw terminals which are more convenient. Designed with large heat sink for better heat dissipation. Specifications: Model: AT1-2200X Power Source Phase: Single-phase Rated Voltage: single-phase/3-phase AC220V Power Supply Voltage: Low voltage Suitable Motor Power: 2.2kW Filter: Built-in filter DC Power Supply Type: Voltage type Control Method: V/F closed loop Output Voltage Adjusting Method: PWM control Rated Current: 12A Protection: Over-current, over-voltage, over-heat, under-voltage, short circuit protection Max. Output Frequency: 400Hz Size: 117.5 x167.5 x 144mm/4.6 x 6.6 x 5.7in Weight: 1.3kg(approx.) Terminal Instruction: Terminal Function Details 15V/24V 15V/24V power input 200mA15V/24V power supply output X6 Input terminal 6 (wire control CW/CCW switch) X6 connects to COM, input signal is effective X5 Input terminal 5 (wire control CCW) X5 connects to COM, input signal is effective X4 Input terminal 5 (wire control CW) X4 connects to COM, input signal is effective X3 Input terminal 3 (speed range 3) X3 connects to COM, input signal is effective X2 Input terminal 2 (speed range 2) X2 connects to COM, input signal is effective X1 Input terminal 3 (speed range 3) X1 connects to COM, input signal is effective SP1 Open collector output 1 SP2 Open collector output 2 5V/10V 5V/10V 20mA power supply output TC Relay output 250VAC 5A/30VDC 3A TA & TB are NC, TA & TC are NO TB Relay output TA Relay output Note: When adjusting parameter, the VFD must stop working, otherwise it will not be able to save parameter setting. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering. Package Includes: 1 x Variable Frequency Drive
