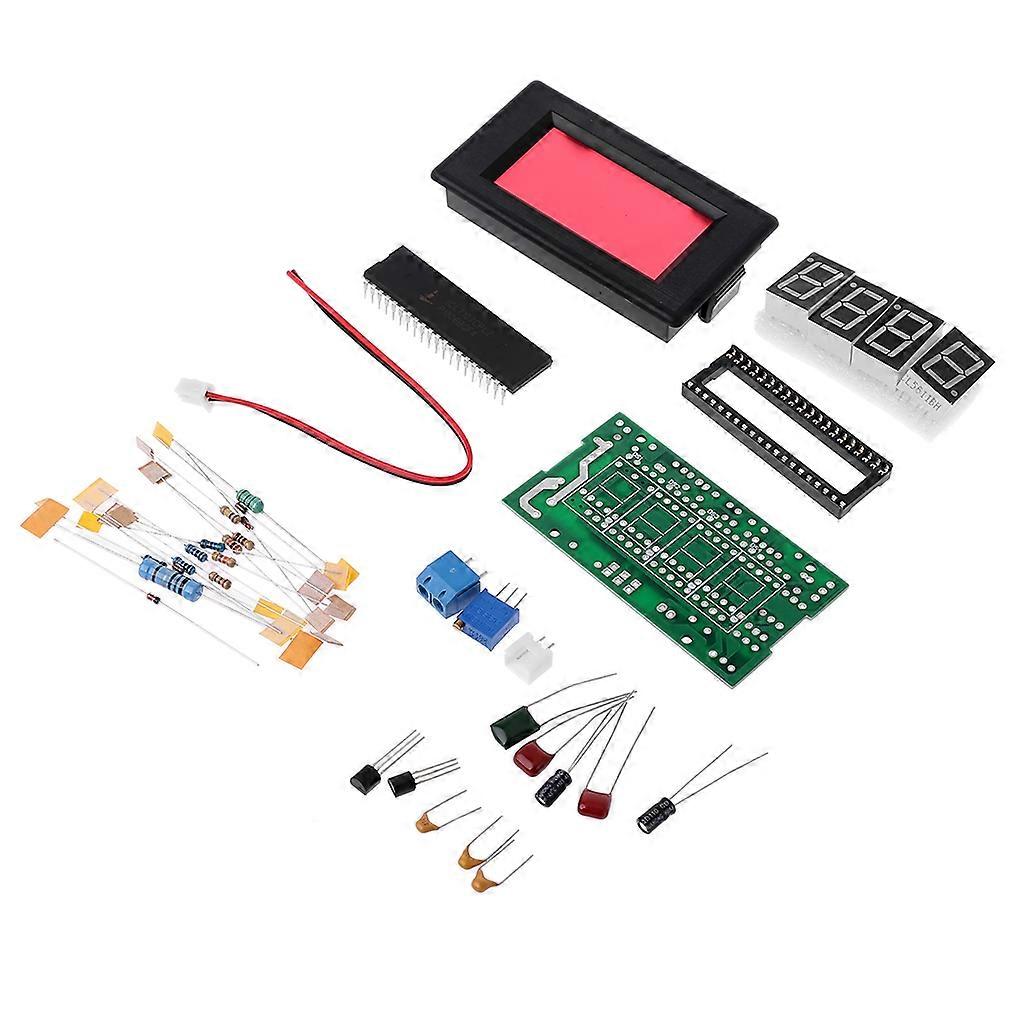

Selt-assembly DIY Module Digital Ammeter Kit Electronic Learning Kit for Men

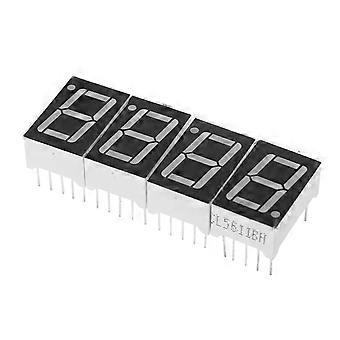

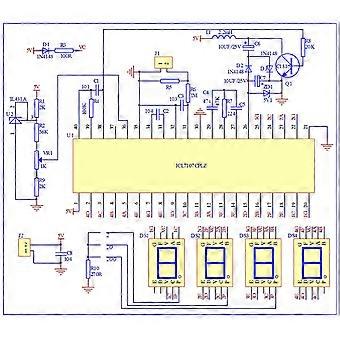

brand new and high quality Circuit Principle: AMM-TE ammeter is mainly composed of ICL7107, power circuit, reference voltage source, input circuit and display circuit. 1.ICL7107 is a BCD output integral type A/D conversion chip, its internal includes ;linear amplification,analog switch, oscillation, display driving, etc,. 2.Power circuit is divided into positive power and negative power. Positive power is input by J2,C8 filtering. Negative is composed of R8, Q1, L1, C6, C7, for D2, D3 and ZD1, which generate -5V voltage is input by chip 26th pin. 3.Reference voltage source is composed of R1, R2, VR1, R9, U2. 36-pin is reference voltage input pin. Adjust VR1 potentiometer to let 36-pin voltage be 100mV. 4.Input circuit is composed of J1, R5, R6 and C3. When the current of measured circuit passes through R5,it will generate a voltage on R5. This voltage will be input to chip 31-pin through R6 current limiting and be processed, C3 is input voltage filtering capacitor. 5.Display circuit is composed of DS1-DS4, for D1, D4, 4 digital tubes can be drived directly by the chip. R10 is current limiting resistance of DS1-DS3 digital tubes decimal points. Finished Product Debugging: 1.After connecting with for DC 5V (please notice the polarity),the digital tube will display -.000 or .000,this is normal. 2.Use multimeter to measure the voltage between chip 36-pin and 35-pin,and adjust VR1 potentiometer let it be 100mV. for Key Points Voltage Reference Value: 1.Chip 1-pin and 21-pin: 5V. 2.Chip 36-pin and 21-pin: 100mV, 3.Chip 26-pin and 21-pin: -5V. Specification: Material: PCB + Metal + Plastic Type: Digital Ammeter Kit Panel Size:79 x 44mm / 3.11 x 1.73in Mount Size:71 x 39mm / 2.8 x 1.53in Quantity: 1 Pc Electricity Parameters: Working Voltage: for DC 5V Working Current: 35 mA Accuracy: ±1mA Measuring Range: 0 - 2A Over Range Indication: Primacy Display 1/-1 Display Color: Red Quantity: 1Set Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you! Package includes: 1Set x Digital Ammeter Kit
