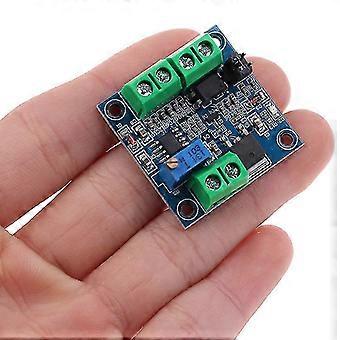

The PWM transfer voltage module LC-LM358-PWM2V converts the PWM digital signals into 0 to 10V analog signals.It can be used as signal interface switching for PLC or other industrial control boards. The output voltage is regulated by adjusting the duty ratio of the PWM. The modules are small in size and easy to use in different places.Features:MCU embedded technologyEasy to operate, fine tuned by potentiometerSelect the PWM signal input level range through short-circuitThe module is smaller, easy to carry and useParameter:Work Voltage:DC 12V-30V; (> 100MA)PWM Receiver Frequency:1KHZ-3KHZPWM signal input level range:The peak of 4.5V to 10V level. The short cap install in 5V. This level is used for normal controller or 5V MCUThe peak of 12V to 24V level, so inserted in 24V. The short cap install in 24V. This level is used for normal PLC controllerConversion range:0%-100% PWM to 0-10VAllowable error:5%Hardware Interface:VCC:DC 12V-30VGND:GroundPWM:Positive of PWM input signalGND:Negative of input signalVOUT:Output Voltage 0-10VGND:Output Voltage GroundOperation instructions:After power on, without input signal, the output is 0V, so only input can output.The first time when the power is on, it is best to do a calibration debugging:Input a 50% duty ratio signal to PWM/GND and adjust the relative amplitude short cap. The frequency is 1KHZ-3KHZ, Measured VOUT and GND with a multimeter and it will display 5V. Adjust potentiometer to make sure display 5.00V on multimeter. This will calibrate your pulse signal to this module.When the frequency changes, the correspondences may be offset and need to be re calibrated.The output voltage can be adjusted by adjusting the duty ratio.The accuracy can be controlled by adjusting the potentiometer.The package includes:1Pc PWM To Voltage Converter Module
