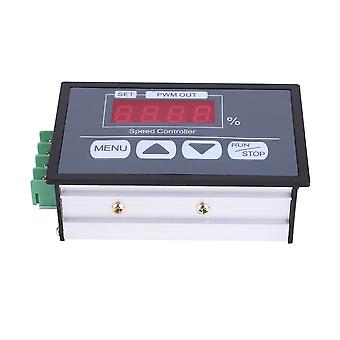

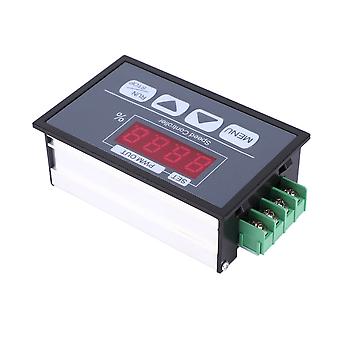

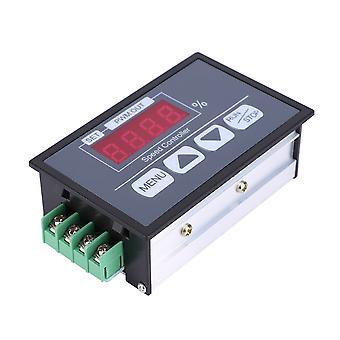

PWM Speed Regulator Button Type Motor Current Regulation Type Power Controller DC6~60V U2EO3

Features The regulator adopts an integrated design, which is more convenient to use. The upper and lower limits of the rotational speed can be set. The motor acceleration and dleration range can be set. The motor can be set to slow start/slow stop time, and the motor starts and stops more smoothly. Wide power supply voltage range and stepless speed regulation. Features: -The regulator adopts an integrated design, which is more convenient to use. -The upper and lower limits of the rotational speed can be set. -The motor acceleration and dleration range can be set. -The motor can be set to slow start/slow stop time, and the motor starts and stops more smoothly. -Wide power supply voltage range and stepless speed regulation. Specification: Input Voltage:DC6~60V Output Voltage:Linearity under load Output Current:0~30A Continuous Current:Within 20A Speed Regulation Type:Current Regulation Speed Regulation Mode:Inching + - Speed Regulation Range:0~100% Control Frequency:21KHz Connection Type:Barrier terminal block Supported Motor:Brush Motor Size:96 x 61 x 34mm / 3.78 x 2.4 x 1.34in Panel Opening:92 x 56mm / 3.62 x 2.2in Rotation Speed Digital Display:0~100% Package List: 1 x Speed Regulator Package List
