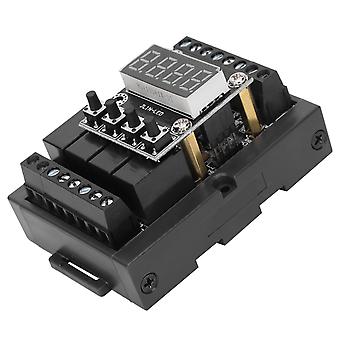

Features 1、Input high-speed pulse C235, C251, function compatible with FX1N series Y0, Y1 can send 10K pulse, function compatible with FX1N series. 2、The power circuit has undergone multiple anti-interference design, without fear of various harsh electromagnetic interference working environments. 3、Can be flexibly used in various industrial automatic control situations, such as plastics, textile, food, packaging, woodworking, and single process control devices. 4、Made of high-quality materials, strong and durable, has a long service life. 5、With strict quality control and quality assurance, high safety factor, can be used with peace of mind. Specification Item Type: PLC Industrial Control Board Material: Plastic Model: JL1N-10MRY Output Current: DC24VAC220V Output Frequency: 10 (kHz) Output Type: Relay output Output Points: 4 points Analog Input and Output: 1AD Memory Capacity: 2000 steps Some customers respond that downloading programs is slow. Our default download program length is 8000 steps. Actually, most customers write programs that do not exceed 2000 steps. Therefore, you can set it in the programming software to increase the download speed by 4 times. Setting Method: After clicking the + sign in front of the parameter in the program data list, the PLC parameter will appear. Double-click the PLC parameter and the parameter setting interface will appear. In the parameter setting interface, set the memory capacity from 8000 to 2000. The programming line USB to TTL and USB to 232 driver are the same. After installing the driver, a serial port will appear. Please select a baud rate of 9600 when downloading. This PLC Series Has 2 Independent 232 Serial Ports, One Is 232 level 9pin port (2: TXD 3: RXD 5: GND), One Is A 4pin Port With TTL Level (1: GXD 2: TXD 3: RXD 4: 5V), both of which are programmable and connected to the touch screen. When programming, the 9pin port uses the USB-232 cable; the 4pin port uses the USB-TTL cable. When connecting the touch screen, the 232 level 9pin port is directly connected to the touch screen with a 9pin male to female wire (actually only 3 wires are used, namely 2-2, 3-3, 5-5). The TTL level 4pin port needs to use our company's TTL to 232 conversion board to convert to 232 level before it can be connected to the touch screen. Size: Approx. 38mm / 1.5in 73mm / 2.9in 39mm / 1.5in 22.5mm / 0.9in 46mm / 1.8in 34mm / 1.3in 40mm / 1.6in Package List 1 x PLC Industrial Control Board
