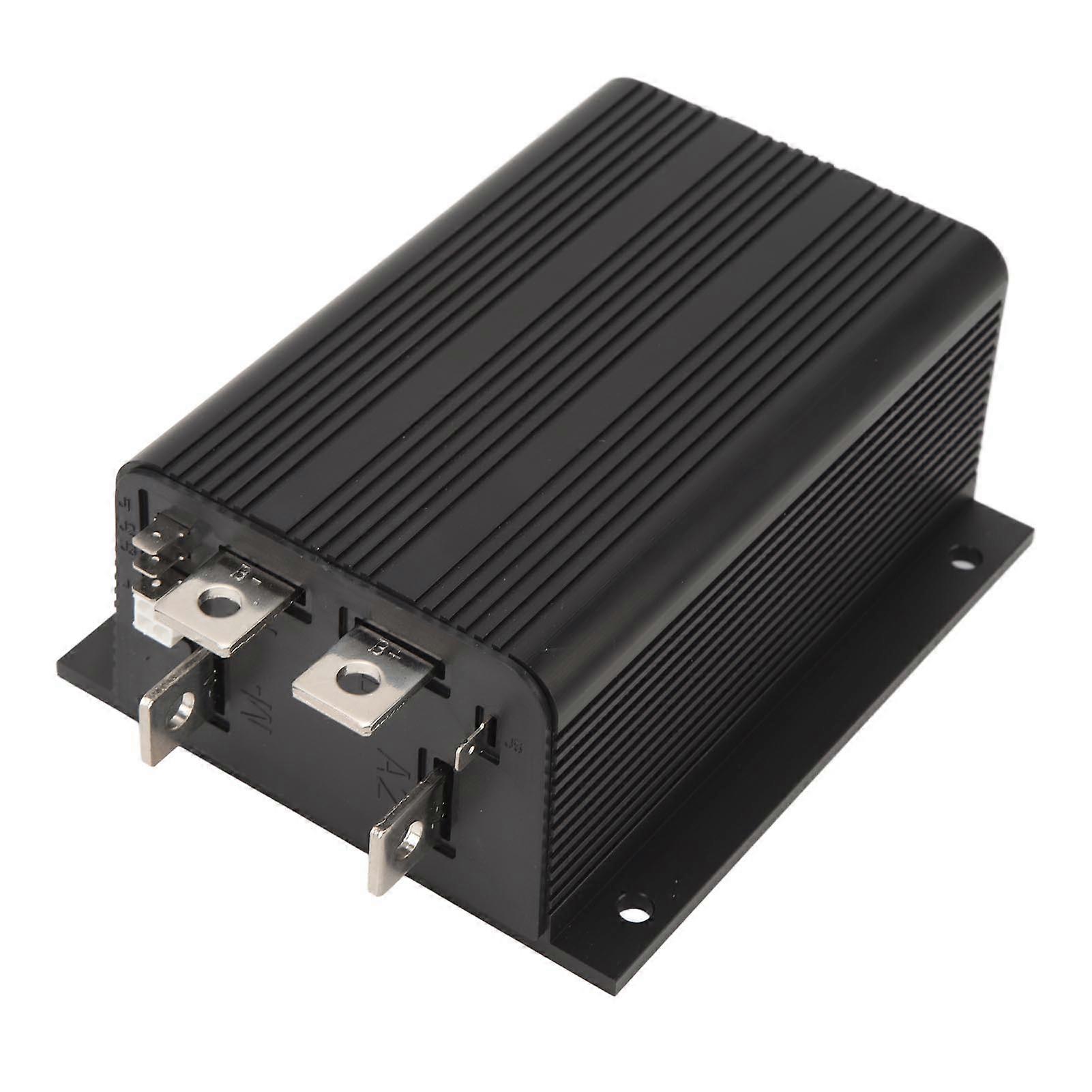

Feature: 1. OE Number: Golf cart motor controller replace part number are 1204 5305, P1204M 5305. Please check the part numbers whether it suits your vehicle before purchasing. 2. Vehicle Fitment: Golf carts controller is replacement for Curtis, also be applied to forklifts, transport vehicles, etc., if using other vehicles need to be programmed by yourself. 3. Main Function: Motor controller is designed to provide smooth, quiet, cost effective motor speed and torsion control. Flexible in configuration, also offer diagnostic and testing capabilities. 4. Stable Working: Thermal protection and compensation circuits provide constant current limitation over the operating range and during under and over temperature curtailment. 5. Easy Operation: Simple installation and wiring is achieved using push in connectors for control signals and plated solid copper buses for power connections. Specification: Item Type: Golf Cart Motor Controller Material: Aluminum OE: 1204 5305, P1204M 5305, 1204M 410 Operating Voltage: 36-48V Current: 325A Throttle Type: 0-5V Application: Replacement for Curtis, for forklifts, transport vehicles, etc. (If using other vehicles need to be programmed by yourself.) Detailed Information: Nominal Battery Voltage (volts): 36-48V 2 Minute Current Rating (amps): 325 amps 5 Second Boost Current Rating (amps): 358 amps 1 Hour Current Rating (amps): 140 amps Plug Brake (A2 Bus): Yes PWM Operating Frequency: 15.6 kHz Electrical Isolation From Heat Sink (minimum): 500 VAC KSI Input Current (without contactor engaged): 70 mA without programmer, 130 mA with programmer Logic Input Current: <2 mA Status LED Output Current (maximum): < 2 mA Ten Throttle Types Are Available For These Controllers: Type 0: 2 wire Potentiometer, 0-5 kΩ Type 1: 2 wire Potentiometer, 5kΩ-0 Type 2: Single Ended 0-5V input Type 3: 2 Wire Potentiometer, 4.6kΩ-0 Type 4: 2 Wire Potentiometer, 5.5kΩ-0 Type 5: 2 Wire Potentiometer, 1kΩ-0 Type 6: ITS Input Type 7: Single Ended 6.3-10.6 V Inputs Type 8: Single Ended 6-12 V Input Type 9: Single Ended 3 wire potentiometer, 0-5kΩ Operating Ambient Temperature Range: -40°C to 50°C Storage Ambient Temperature Range: -40°C to 85°C Description: The controller is an ideal solution for a variety of electric vehicle applications, including industrial trucks, personnel carriers, material handling vehicles, golf carts and more. The J5 terminal on the new controller is not activated by default. Controller wiring is the same as the older controller without the J5 terminal.. Package List: 1 x Controller Note: 1. 1204 5305, P1204M 5305 can replace 1204 410, 1204 412 2. 1204M 5305 is an upgraded version of the 1204M 5301 controller, offering the new function "Reverse signal output/main contactor coil drive" via 6.35 mm push in terminal J5.3. Please double check the part number of your item, matching information is for reference only.
