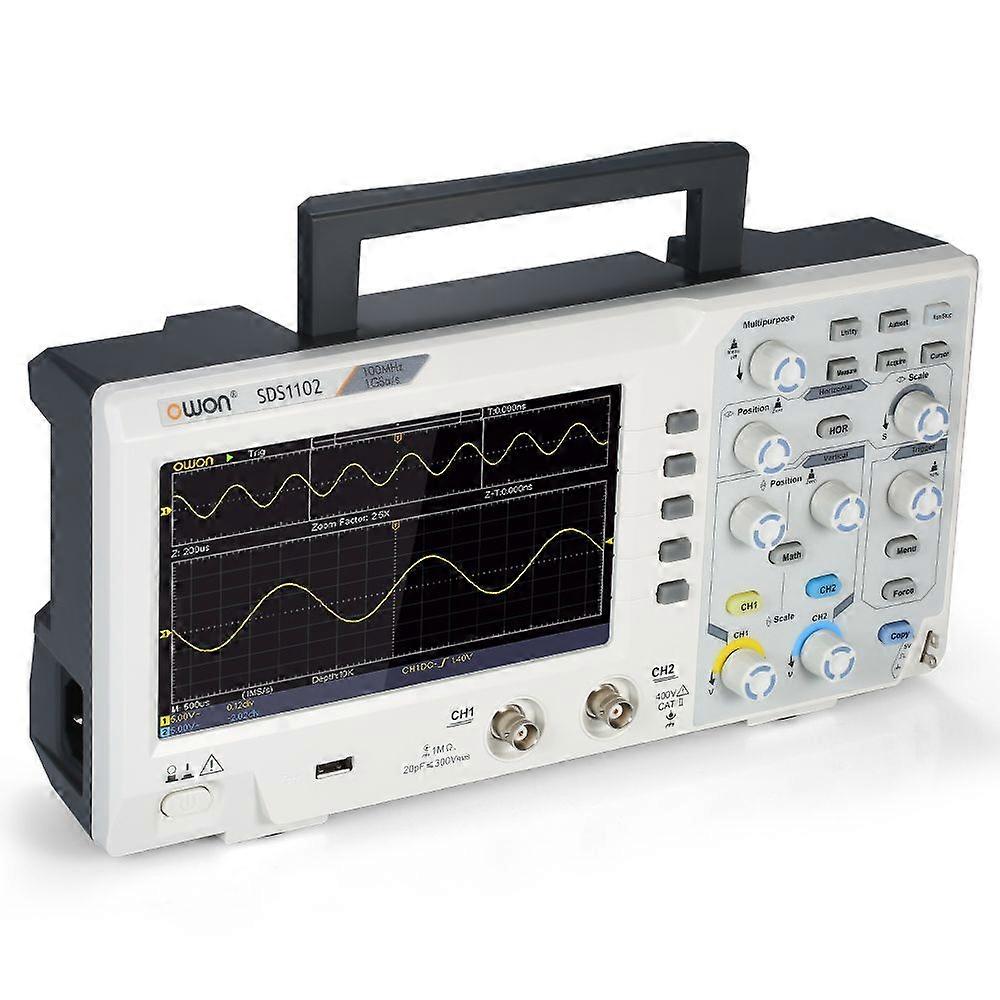

Feature:1. 100MHz bandwidth.2. 1GS/s sample rate.3. Time base range: 2ns/div~100s/div.4. 3.5ns rise time.5. 2 channels.6. 7.0-inch high resolution LCD display.7. Support for SCPI and LabVIEW.8. 100MHz bandwidth. 1GS/s sample rate.9. 3.5ns rise time. 2 channels.Specification:Features:100MHz bandwidth.1GS/s sample rate.Time base range: 2ns/div~100s/div.3.5ns rise time.2 channels.7.0-inch high resolution LCD display.Support for SCPI and LabVIEW.Specifications:Functions & Specifications of SDS1102Bandwidth100MHzSample Rate1GS/sHorizontal Scale(s/div)2ns/div - 100s/div, step by 1-2-5Rise Time (at input, typical)≤3.5nsChannel2Display7" color LCD, 800 × 480 pixelsInput Impedance1M ± 2%, in parallel with 20pF ± 5pFChannel Isolation50Hz:100:1, 10MHz:40:1Max Input Voltage400V (PK-PK) (DC+AC, PK-PK)DC Gain Accuracy±3%Record Length10kDC Accuracy (average)Average≥16: ±(3% reading+0.05div) for VProbe Attenuation Factor1X, 10X, 100X, 1000XLF Respond (AC, -3dB)≥10Hz (at input, AC coupling, -3dB)Sample Rate / Relay Time Accuracy±100ppmInterpolationsin (x) / xInterval(T) Accuracy (full bandwidth)Single: ±(1 interval time + 100ppm × reading + 0.6ns),Average16: ±(1 interval time + 100ppm × reading + 0.4ns)Input CouplingDC, AC, and GNDVertical Resolution (A/D)8 bits (2 channels simultaneously )Vertical Sensitivity5mV/div - 5V/div (at input)Trigger TypeEdge, VideoTrigger ModeAuto, Normal, and SingleTrigger Level±5 divisions from screen centerLine / Field Frequency (video)NTSC, PAL and SECAM standardCursor MeasurementV, and T between cursorsAutomatic MeasurementVpp, Vavg, RMS, Frequency ,Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot,Pre-shoot, Rise time, Fall time, +Width, -Width, +Duty, -Duty, Delay A→B , Delay A→BWaveform Math+, -, ×, ÷, invert, FFTWaveform Storage16 waveformsLissajous Figure Bandwidthfull bandwidthLissajous Figure Phase Difference±3 degreesCommunication InterfaceUSB host, USB deviceFrequency CounteravailablePower Consumption15WFuse2A, T class, 250VPower Supply220V (EU/UK plug), 110V (US plug), 50/60Hz, CAT IIPlug TypeEU / UK / US (Optional)Item Size300 * 76 * 153mm / 11.81 * 2.99 * 6.02inNet Weight1403g / 3.09lbPackage Weight1601g / 3.53lbPackage Size37 * 18 * 11.5cm / 14.57 * 7.09 * 4.53inPackage List:1 * Oscilloscope2 * Oscilloscope Probe1 * Oscilloscope Powerline1 * Data CD1 * USB Cable1 * Package of Accessory1 * Quick Guide (English)Note:Please read the instruction manual in CD carefully to avoid injury and prevent damage to this product.Package List:1 * Oscilloscope2 * Oscilloscope Probe1 * Oscilloscope Powerline1 * Data CD1 * USB Cable1 * Package of Accessory1 * Quick Guide (English)Note:Please read the instruction manual in CD carefully to avoid injury and prevent damage to this product.
