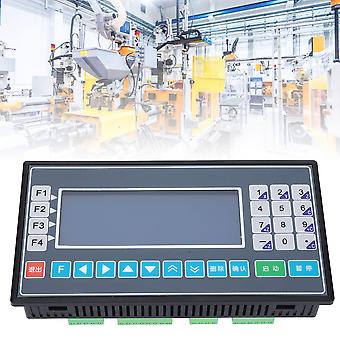

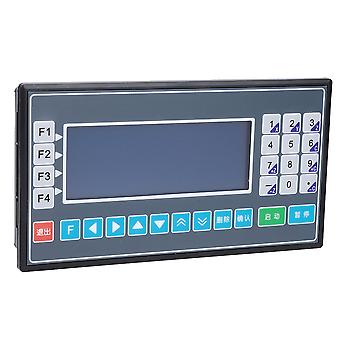

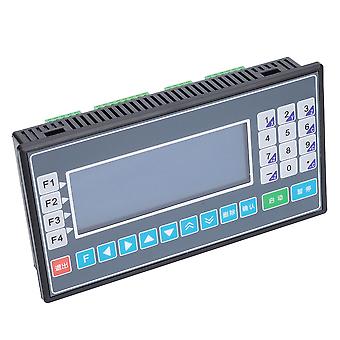

Numerical Control System Stepper Motor Controller CNC Metalworking Equipment 32 Bit CPU(Single Axis )

Features 1、Supports automatic operation including dry running and single-step running, CNC lathe controller 's manual operation including motor CW /CCW, back to program 0, back to mechanical 0 and output control. 2、Direct output terminal interface on the back reduces the transfer board, the terminals on the back can be directly wired, clear and convenient, which saves costs 3、Isolated IO port means that with input and output ports isolated from the system, the output port capacity can be up to 1A 4、You can directly use the USB cable to power the system, which is convenient for the transmission of the boot screen and the program, learning and operation 5、With 20 control commands, external manual supports control motor CW /CCW, start, pause, alarm, emergency stop, etc. 6、CNC lathe controller's parameters include system parameters, system self-test, IO settings, user and manufacturer password management, etc. And it also supports program editing, reading, deleting and saving. 7、Newly developed motion controller uses a high-performance 32-bit CPU, the driving equipment uses a subdivided stepper motor or servo motor, equipped with a liquid crystal display, a completely enclosed touch operation keyboard, while the system has high reliability, high precision, low noise and simple operation. Specification Item Type: CNC lathe controller Model: CM35L-10 System Composition: Control System Mainly Composed of Following Parts: High-performance, high-speed 32-bit CPU LCD monitor (Resolution: 192 x 64) Special motion control chip (Signal Output: 5V pulse + direction) Input / output (14 photoelectric isolation 24V input, 8 photoelectric isolation 24V output, single channel rated 500mA) Maximum Program Line: 480 lines Contact key array (28 keys) System Indicators: Minimum Data Unit: 0.001mm Maximum Data Size: ± 99999.999mm Fast Motion speed Limit: 9000mm / min (when pulse equivalent is 0.001mm) Maximum Processing speed Limit: 9000mm / min (when pulse equivalent is 0.001mm) Maximum Pulse Output Frequency: 150KHz Control Shaft Number: 1-4 axis (X, Y, Z, C) Linked Shafts Number: X, Y, Z, C axis can be linearly interpolated, X, Y can be circularly interpolated Electronic Gear: Numerator: 1-99999, Denominator: 1-99999 System Main Functions: Automatic, manual, program, parameter, self-check, setting, etc. Optional Style: Single-axis / Biaxial / Tri- axis / 4-axis (optional) Package List 1 x Controller 1 Pack x Accessory
