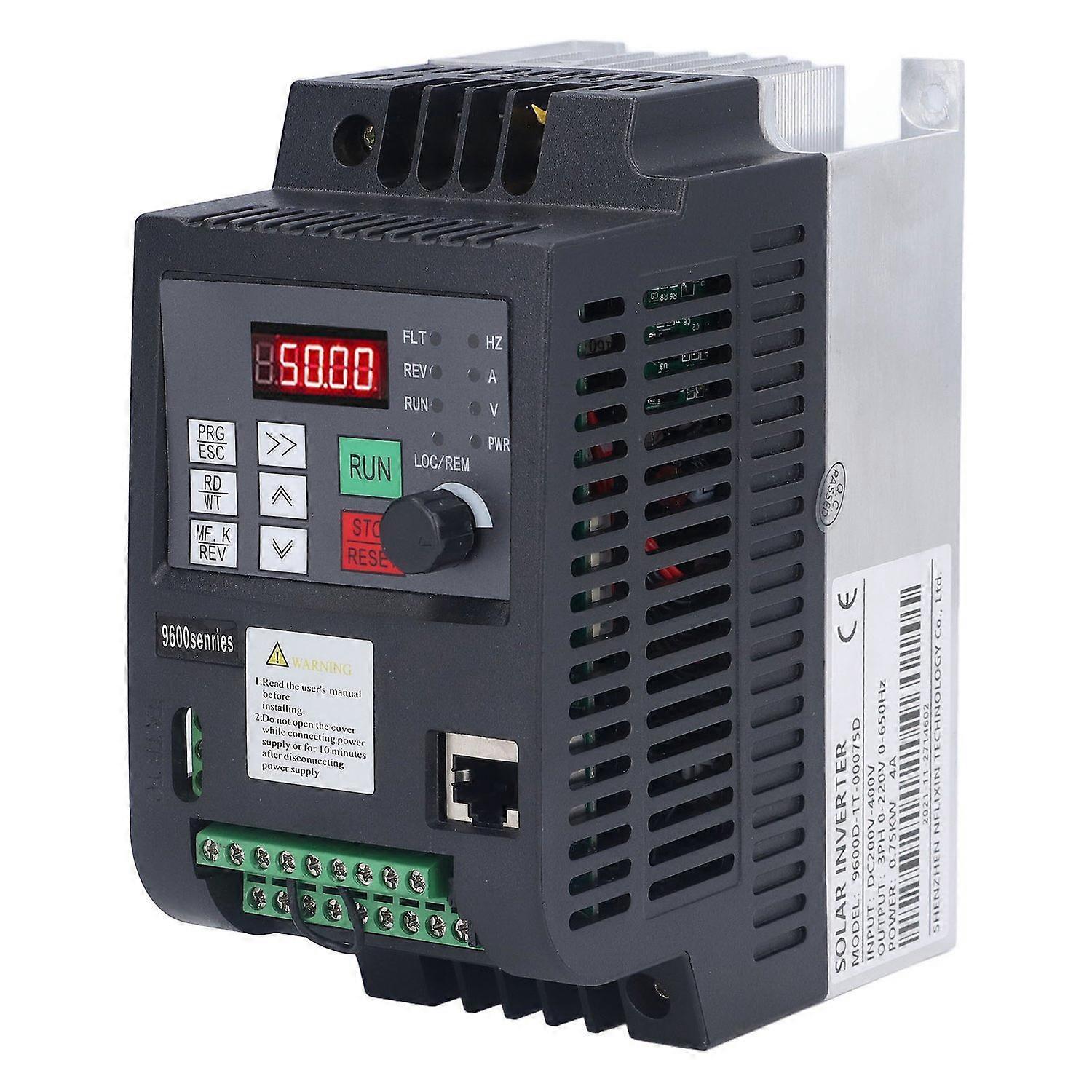

Feature: 1. GOOD HEAT DISSIPATION: Using 24V DC cooling fan, external aluminum heat dissipation base, bring efficient heat dissipation 2. 2 LAYER BOARD, LOW FAILURE RATE: Simplified layout with double layer board design, PCB board is treated with three proof paint, possess simple structure and low failure rate 3. HIGHLIGHT DISPLAY: Variable frequency drive using humanized operation, highlight red digital tube display, avoid misoperation 4. AVOID ELECTRIC SHOCK: Pay attention to safety, ABS fire resistant and heat resistant plastic material shell, the terminal is fully surrounded by design to avoid the danger of electric shock 5. STABLE PERFORMANCE: Input voltage from DC200‑400V, output voltage is AC 3PH 0‑220V 0‑650Hz, rated power for 0.75KW, rated current for 4A Specification: Item Type: Variable Frequency Drive Material: ABS, aluminum Model: 9600D-1T-00075D Input Voltage: DC200-400V Output Voltage: AC 3PH 0-220V 0-650Hz Rated Power: 0.75KW Rated Current: 4A Size : Approx. 82 x 145 x 155mm / 3.23 x 5.71 x 6.1in. Package List: 1 x Variable Frequency Drive1 x User Manual Note: 1. Please try to meet the recommended voltage for the DC input voltage, otherwise the solar energy conversion rate will be reduced.2. The AC input and DC input switches cannot be closed at the same time, otherwise the inverter or solar panel will be damaged.3. Do not use the inverter with overload. For example, the power of the inverter is smaller than that of the motor, or the ordinary motor is running at more than 50HZ, otherwise the inverter will frequently skip the overload protection fault, and even fry the machine, the motor may be overheated and burn out.4. Special inverter for solar energy, suitable for solar photovoltaic panel power generation to drive motor loads such as fans and pumps. The selection can be selected according to the motor voltage and power. If the water depth of the submersible pump exceeds 30 meters, it is recommended to enlarge one or two stages of optional inverter, and add a reactor between the inverter and the water pump. Otherwise, the service life of the inverter will be reduced.5. Regarding how to connect the solar panels, such as a 220V motor, the total voltage of the solar panels connected in series must meet 200V‑400V. For 380V motor, the total voltage in series should meet 400V‑700V. The power is that the total power of several groups of solar panels connected in parallel is more than 1.2 times larger than the power of the inverter.
