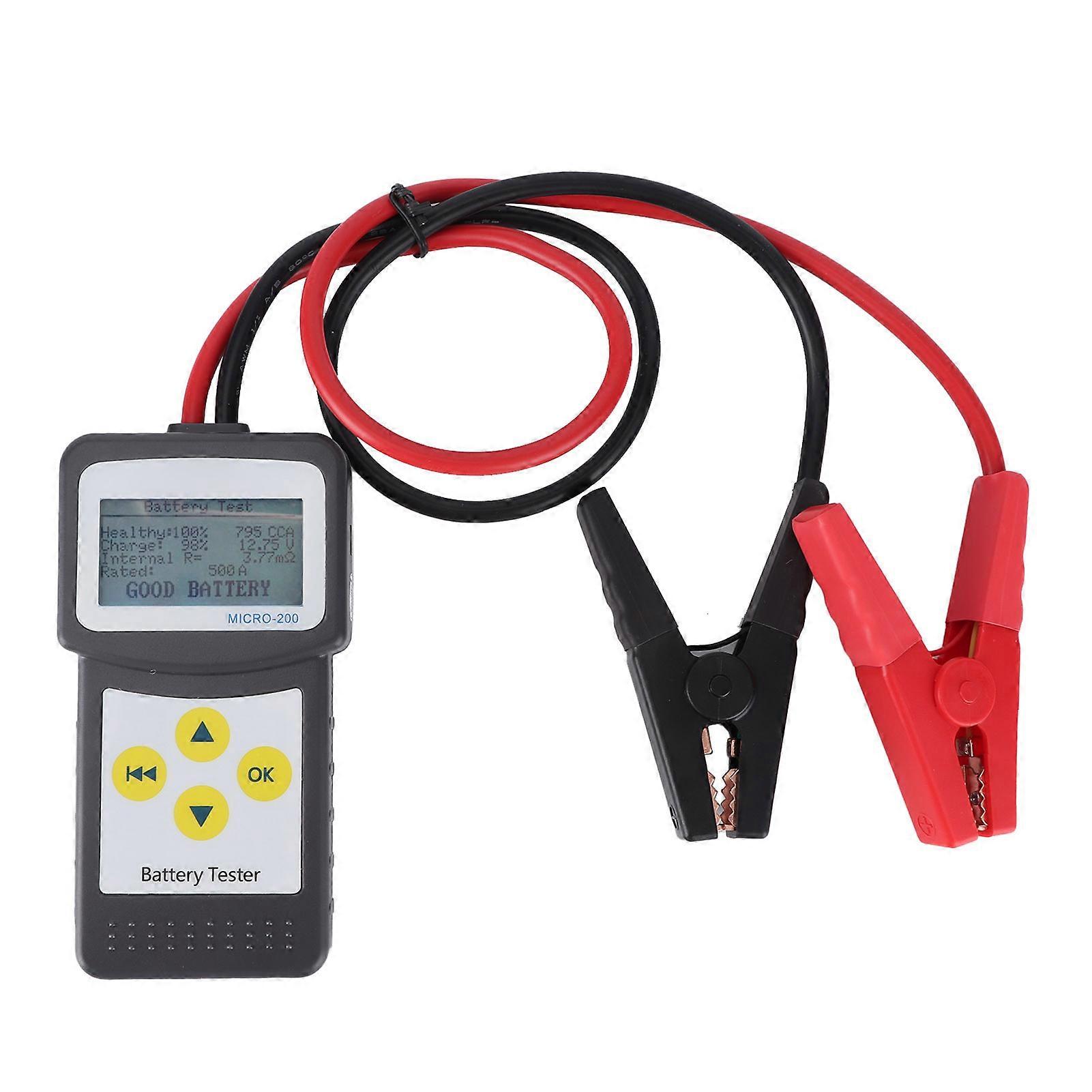

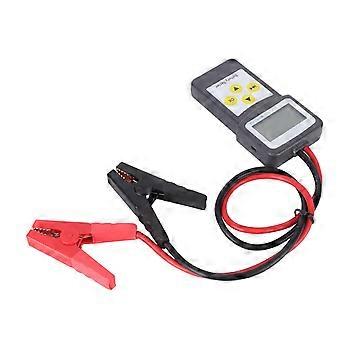

Item Type: Car Battery Tester <br> <br>Housing Material: Acid-resistant ABS plastic <br> <br> <br>MICRO-200 Car Battery Conductance Tester: <br>Product Specification: <br>1. Application: 12V automotive cranking acid battery and 12v car system test <br>2. Measure Range: 30-200AH <br>3. Working Environment Temp: -20℃-50℃ <br>4. Special Test Clip: Double conductor for Kelvin clamp <br>5. Measure Range: 30AH-200AH <br>6. Voltage Measure Range: 7-16V DC <br> <br>How to Use: <br>1.Connect the red test clamp with battery positive and the black one with negative, the tester will power on automatically. <br>Voltage battery below 7.0VDC canrsquot be tested properly, then press OK key to continue. <br>2.According To The Tester, You Can Press UP/DOWN Key To Choose: <br>battery test <br>starting system test <br>charging system test <br>battery test result <br>print test result <br>Select language <br> <br>Perform Battery Test: <br>Select the battery test and press OK key to continue. <br>Input Testing Standard: The standard which you can see the front of the battery, such as CCA, BCI, DIN. If you canrsquot find any info about the standard, <br>you can choose GB standard. Choose GB standards for little tolerance. <br>Input Rated Capacity: You can see the starting current standards in front of the battery. Such as BCI/300A. <br>Then press OK key to start testing. <br> <br>Starting System Test: <br>After Entering The Second Start System Test Functionthe Press OK Key as follows: <br>Starting the engine as prompted, the tester will automatically complete the cranking test and display the result. <br>Normally, cranking voltage value lower than 9.6V is regarded as abnormal and it is OK if it is higher than 9.6V. <br>Test result of the tester includes actual cranking voltage and actual cranking time. <br>When the cranking test is abnormal, battery test result will also be displayed at the same time. <br>This is for the convenience of the maintenance personnel to quickly know the whole state of the starting system according to the data. <br> <br>Charge System Test: <br>When enter the charging test, the tester will prompt "Loaded testing" . <br> <br>Note: Do not shut down the engine during the test. All electrical appliance and device are in OFF state. Turn on/off any electrical <br>appliance in the vehicle during the test will affect the accuracy of the test result. <br>Operate accordingly to increase the engine rotating speed to 2500turns, and keep for 5 seconds. <br>Tester starts the charging volt test after increase rev detected. <br>After the test finished, tester displays the effective charging volts, ripple test result and charging test result. <br> <br>NOTE: If no increase rev detected, it shall be the fault of generator regulator or connection with battery failed. Tester will try 3 times to further detect, if still failed, it will skip the increase rev detect and the test result displays "No Volt Output". <br>Check the connection between generator and battery, then retest. <br> <br>Charge Test Result: <br>1. Charging Volt: Normal. The generator output normal, no problem detected. <br>2. Charging Volt: Low. Che<br>1、Conductivity technology, which is simple and fast, without waiting, and the test results are accurate. <br>2、Support car battery testing, and with car charging test system, car start testing system. <br>3、Equipped with USB interface, it can be connected to a computer to print test results directly, which is highly practical. <br>4、Widely used in 12V automotive cranking acid battery and 12V car system test. <br>5、Easy to use and quick to install, and will not take up much of your time, very convenient.For power loss battery (such as a vehicle for a long time on hold, the battery is not charged in time; forget to close the lights, the doors resulting in serious loss of battery electric vehicle and can not be started, etc.), in the actual testing process may also be prompted to "Please replace the battery." For such batteries, please consult the battery manufacturers, and then tested.1 x Car Battery Tester (Including Clamps)<p>1 x USB Data Cable</p>
