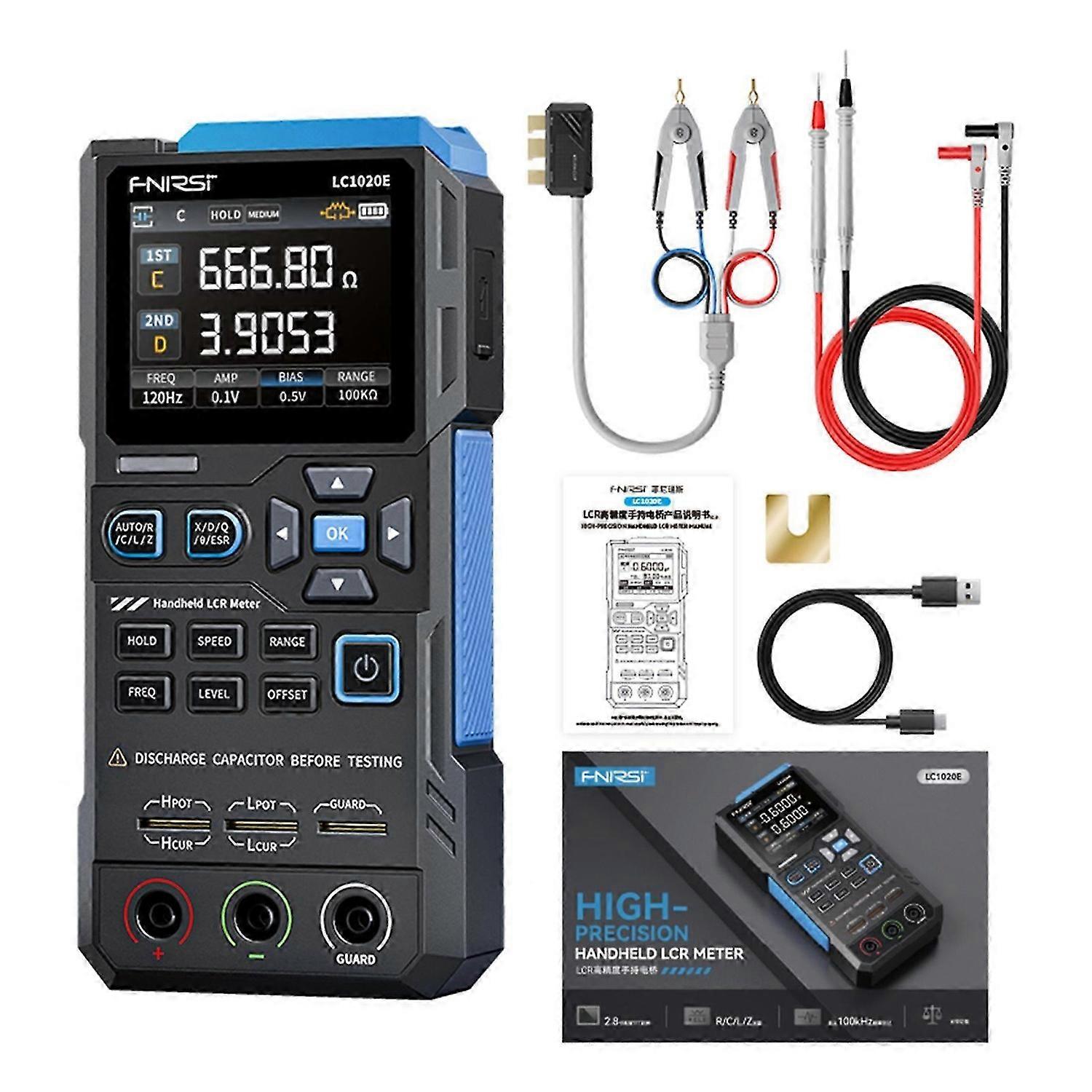

Features<br> High-Precision & Wide Range Measurement: The LC1020E delivers a basic-accuracy of 0.3%, ensuring reliable and precise readings for professional use. It supports a broad measurement range for inductance (0-100H), capacitance (0-100mF), and resistance (0-10MΩ), making it suitable for a vast array of components.<br> Display: 2.8-inch TFT-LCD display<br> Basic Accuracy: 0.3%<br> Display Digits: Main Parameter: 4.5 digits; Secondary Parameter: 4.5 digits<br> Test Frequency: 100Hz, 120Hz, 1KHz, 10KHz, 100KHz<br> Test Level: 0.1V, 0.3V, 0.6V<br> Internal Bias: 0.0V, 0.5V<br> Measurement Parameters: Main Parameters: AUTO/R/C/L/Z; Secondary Parameters: X/D/Q/θ/ESRs<br> Measurement Range: L: 0-100H, C: 0-100mF, R: 0-10MΩ<br> Measurement Speed: Fast (4 times/s), Medium (2 times/s), Slow (1 time/s)<br> Calibration Functions: Open circuit calibration, Short circuit calibration<br> Comparison Function: Used to calculate the relative error between the component measurement value and the nominal value, displayed as a percentage, and provides filtering results. Nominal values and tolerance can be set, with a tolerance range adjustable from 0.1% to 99.9%.<br> Record Function: Checks if the measured component data meets the set nominal value and tolerance, recording the number of successful and failed measurements.<br> Test Terminal Configuration: Three-terminal, Five-terminal<br> Output Impedance: 100Ω<br> Communication Interface: USB-TypeC (Virtual serial port)<br> Other Features: Language settings, Screen brightness, Sound settings, Auto power-off, Calibration settings, System information.<br> Packing list<br> 1. LC1020E LCR Meter<br> 2. Data Cable<br> 3. Shorting Plate<br> 4. Kelvin Test Clip<br> 5. Test Leads (Black+Red)<br> 6. User Manual<br> Package List:<br> 1 Set LC1020E Handheld Digital Bridges LCR Tester
