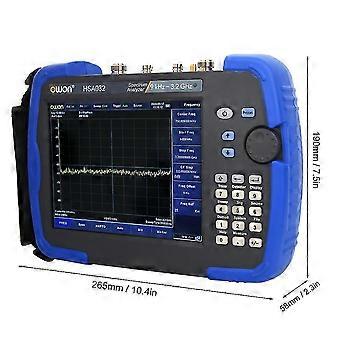

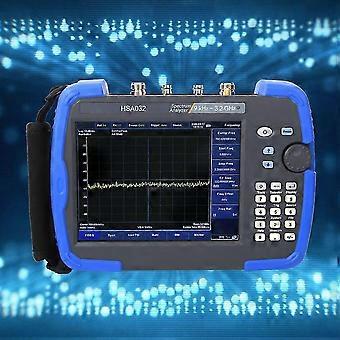

Feature:1. The frequency range is from 9kHz up to 3.2GHz, with -160dBm displayed average noise level.2. Handheld spectrum analyzer, compact in size and light in weight, easy to carry around with you.3. Phase noise -82dBc/Hz at 1Gz and offset at 10KHz, 10Hz minimum resolution bandwidth (RBW) and the total amplitude accuracy is <1.5dB.4. 8 inches touching screen display, easy to operate and convenient to read data, reliable to use.5. Adopts high quality material, resistant to wear, not easy to break or damage, durable in use.Specification:Condition: 100% NewItem Type: Spectrum AnalyzerMaterial: ABSModelHSA032FrequencyRange9kHz-3.2 GHzResolution1HzFrequency SpanRange0 Hz, 100 Hz to maximum frequency of deviceAccuracy span /(swept points -1)Internal ReferenceReference Frequency10.000000 MHzReference Frequency Accuracy[(days from last calibrate x freq aging rate)+ temperature stability + initial accuracy ]Temperature Stability<2.5ppm (15 to 35)Aging Rate<1ppm/yearReadoutMarker Frequency Resolutionspan/(the number of sweep points -1)Uncertainty(freq indication x freq reference uncertainty +1% x span +10% x resolution bandwidth + Marker Frequency Resolution)Frequency CounterResolution1 Hz, 10 Hz, 100 Hz, 1 kHzAccuracy(marker freq x freq reference uncertainty + counter resolution)BandwidthResolution Bandwidth (-3dB)10 Hz to 500 kHz (1-10 steps by sequence), 1 MHz, 3 MHzResolution Filter Shape Factor (60dB : 3dB)<5: 1 typical (digital and close to Gaussian shape)Accuracy< 5%, typical (RBW 1 MHz)Video Bandwidth (-3dB)10Hz to 3MHzAmplitude SpecificationAmplitude and Electric LevelAmplitude Measurement RangeDANL to +20 dBm, close the preamplifierReference Electric Level-80 dBm to +30 dBm, 0.1dBm stepsPreamp20 dB, nominal, 9 kHz to 3.6 GHzInput Attenuator Range0 to 50 dB, in 1 dB stepMaximum Input DC Voltage50 VDCMaximum Continuous Power+30dBm, average continuous powerDisplayed Average Noise Level (DANL)(Input Attenuation= 0 dB, Sample Detector, Trace Average 20, 20 to 30, Input Impedance=50 , RBW normalizes to 1Hz)Preamp Off1 MHz~1GHz -140 dBm (Typical), <-130 dBm1GHz~1.5 GHz -138 dBm(Typical), <-128 dBmPreamp On1 MHz~1GHz -160 dBm (Typical), <-150 dBm1GHz~1.5 GHz -158 dBm (Typical), <-148 dBmSSB Phase Noise (20 to 30,fc=1 GHz, RBW=1 kHz, VBW=1 kHz)Phase Noise<-80 dBc/Hz at 10 kHz offset<-100 dBc/Hz at 100 kHz offset<-107 dBc/Hz at 1 MHz offsetLevel Display RangeLog Scale Coordinate1dB ~255dBLinear Scale Coordinate0 to reference levelLevel UnitdBm, dBuW, dBpW, dBmV, dBuV, W,VPoints201~1001Number of Traces5DetectorsPositive-peak, negative-peak, sample, normal, RMS,AVG, QualPeakTrace FunctionsClear write, Maximum Hold, Min Hold, View, Blank, AverageFrequency Response (20 to 30, 30% to 70% relative humidity, input attenuation=21 dB, reference frequency=50 MHz)Preamp Off (fc100K)0.8 dB;0.4 dB (Typical)Preamp On (fc1 MHz)0.9 dB;0.5 dB (Typical)Difference and AccuracyRBW Switch DifferenceRBW=10 kHz, Log resolution=0.2 dB, Lin resolution=0.01. NominalInput Attenuation Difference 20 ~30, fc=50 MHz, Preamplifier Off, 10 dB RF attenuation, input signal 1~40dB 0.5 dBAbsolute Amplitude Uncertainty20 to 30, fc=50 MHz, Span=200 kHz, RBW=10 kHz, VBW=10 kHz, peak detector,10 dB RF attenuation,95% confidence levelPreamp Off 0.4 dB, input signal level -20 dBm Preamp On 0.5 dB, input signal level -40 dBmUncertaintyinput signal range 0dbm~-50dbm1.5 dBVSWRinput 10 dB RF attenuation, 1 MHz~1.5GHz<1.5, nominalDistortion and Spurious ResponseSecond Harmonic Distortionfc 50 MHz, Preamp off, signal input -30 dBm, 0 dB RF attenuation, 20 to 30-65dbcThird-order Intermodulationfc 50 MHz+10 dBm1dB Gain Compressionfc 50 MHz, 0 dB RF attenuation, Preamp off , 20 to 30>+2 dBm, nominalResidual Responseconnect 50 load at input port, 0 dB input attenuation, 20 to 30<-85 dBm, typicalInput Related Spurious-30 dBm signal at input mixer, 20 to 30<-60 dBcSweep Time and TriggeringSweep Time100HzSPAN3GHz 10ms to 3000s0 sweep width 10ms to 3000sModeContinue, singleAudio DemodulationFrequency Range100 kHz to 3.2 GHzDemodulation TypeFM/AMAM MeasurementFrequency Range100 kHz to 3.2 GHzModulation Rate20 Hz to 100 kHzModulation Rate Accuracy1Hz, nominal (Modulation rate < 1 kHz) <0.1% modulation rate, nominal (Modulation rate 1 kHz)Depth5% to 95%Depth Accuracy4%, nominalFM MeasurementFrequency Range100 kHz to 3.2 GHzModulation Rate20 Hz to 100 kHzModulation Rate Accuracy1 Hz, nominal (Modulation rate < 1 kHz) <0.1% modulation rate, nominal (Modulation rate 1 kHz)Deviation20 Hz to 200 kHzDeviation Accuracy4%, nominalInputs and OutputsRF Input Connector50 , N-type femaleTrack Generator Output50 , N-type femaleExternal Trigger InputBNC female10M Reference Input/Output50 , BNCInterfaceUSB host, USB Equipment, LAN, earphone portGeneral Technical SpecificationDisplay8 inches touching screen LCDProduct Size (WxHxD)Approx. 265 x 190 x 58 mm / 10.4 x 7.5 x 2.3 inWorking Temperature0~40Storage Temperature
