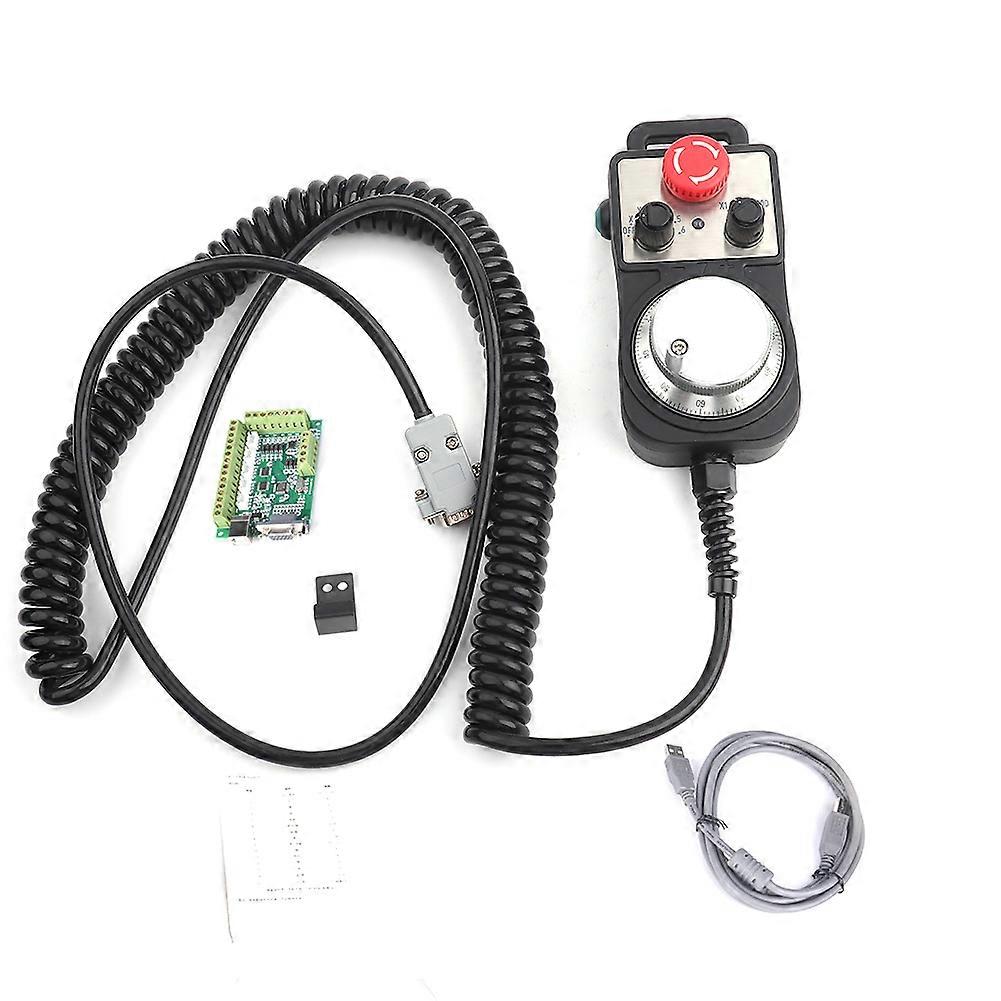

Green 5 Axle Mach3 Usb Interface Board Cnc Motion Control Card With Handwheel

₹10,890.00
+ ₹744.99 शिपिंग

Green 5 Axle Mach3 Usb Interface Board Cnc Motion Control Card With Handwheel

  • ब्रांड: Unbranded
मूल्य: ₹10,890.00
द्वारा बेचा गया:
₹10,890.00
+ ₹744.99 शिपिंग

स्टॉक में है

हम निम्नलिखित भुगतान विधियाँ स्वीकार करते हैं

विवरण

Features: Support various versions of MACH3 software and support the latest version. Wide external voltage input, 12-24V, and anti-reverse function. All input signals are isolated by optical diaphragm, which can be connected to emergency stop, tool setting, limit position, 0 return, etc. to ensure computer security. The input can be connected to a mechanical switch or a proximity switch (to be normally opened with NPN). One-way optocoupler-isolated 0-10V analog voltage output can control the inverter input from 0-10V analog voltage to control the spindle speed. PWM output (5V level) is provided, which can be connected to the spindle governor controlled by PWM. Provide 4 output port (5V level), which can be connected with photocoupler relay module to control water cooling, spray and so on. Maximum 100KHZ output per axle, can be connected to common anode or common cathode, input level is 5V, stepper with optocoupler input or servo motor driver (pulse + direction). Provide 5-axle interface cable socket (XH2.54) for easy connection. Provide an electronic handwheel interface,the board prints all port names, at a glance. Drive output type, strong anti-interference ability, long-distance transmission. Applications: CNC machine tools, printing machinery and other 0 correction and signal segmentation. Specification: Working Voltage: 5V Three Output:Voltage, Single-Ended, Differential Pulse Output: 100PPR Fit for Windows XP Fit for Windows 7 Fit for Windows 8 Fit for Windows 10 Fit for 64 bit System and Laptop,Tablet Package List: 1 x Interface Board 1 x USB Cord 1 x Handwheel 1 x Hook 1 x Optical Disc Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering. Package List 1Support various versions of MACH3 software and support the latest version. 2Wide external voltage input, 12-24V, and anti-reverse function. 3All input signals are isolated by optical diaphragm, which can be connected to emergency stop, tool setting, limit position, 0 return, etc. to ensure computer security. The input can be connected to a mechanical switch or a proximity switch (to be normal 4One-way optocoupler-isolated 0-10V analog voltage output can control the inverter input from 0-10V analog voltage to control the spindle speed. 5PWM output (5V level) is provided, which can be connected to the spindle governor controlled by PWM.
  • Fruugo ID: 296740590-663852816
  • EAN: 8154069136742

उत्पाद सुरक्षा जानकारी

कृपया नीचे दी गई इस उत्पाद से संबंधित विशिष्ट उत्पाद सुरक्षा जानकारी देखें

निम्नलिखित जानकारी इस उत्पाद को बेचने वाले स्वतंत्र तृतीय-पक्ष खुदरा विक्रेता द्वारा प्रदान की गई है।

उत्पाद सुरक्षा लेबल

CE Mark
सुरक्षा चेतावनियाँ: Not suitable for children under 36 months old

डिलीवरी और वापसी

2 दिनों के भीतर भेजा जाएगा

  • EXPRESS: ₹744.99 - के बीच वितरण बुध 08 अक्तूबर 2025–बुध 15 अक्तूबर 2025

चीन से शिप हो रहा है।

हम आपके द्वारा ऑर्डर किए गए उत्पादों को पूरी तरह से और आपके विनिर्देशों के अनुसार डिलीवर करने की पूरी कोशिश करते हैं। हालाँकि, यदि आपको अधूरा ऑर्डर या आपके ऑर्डर से कोई अलग आइटम प्राप्त होता है या किसी अन्य कारण से यदि आप अपने ऑर्डर से संतुष्ट नहीं हैं तो आप ऑर्डर या ऑर्डर में शामिल कोई भी उत्पाद वापस कर सकते हैं और आइटम के लिए पूर्ण रिफ़ंड प्राप्त कर सकते हैं। सम्पूर्ण वापसी पॉलिसी दिखाएँ
