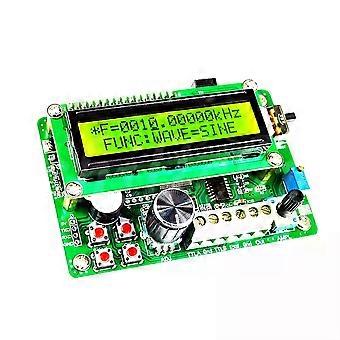

FY2000S 5M/8M/10M DDS Function Signal Generator Module 1602 LCD Display Sine Triangle Square Wave TTL Output Sweep Frequ Counter FY2000S 2M/5M/8M/10M DDS Function Signal Generator Module 1602 LCD Display Sine Triangle Square Wave TTL Output Sweep Frequency Counter Description: FY2000S series DDS function generator adopts direct digital synthesis technology (DDS), which has high performance indicators and numerous functional characteristics required for rapid measurement. It is simple and convenient to use, with high signal stability. It also has functions such as TTL output, external frequency measurement, and counter. The output signal can adjust amplitude and DC bias. The FY2000S series has linear and logarithmic frequency scanning functions, which can set the scanning frequency range and scanning time arbitrarily. At the same time, the instrument can also communicate with a PC through a serial port and control its working state through a PC. It is an ideal equipment for electronic engineering, laboratories, production lines, teaching, and scientific research, and can also be used as a supporting module for industrial equipment. Feature: Small size, multifunctional, and convenient to carry. High frequency accuracy: The frequency accuracy can reach the order of 10-6. High frequency resolution: Full range frequency resolution of 10mHz. No range limit: The full range frequency is not divided into different levels and can be set digitally. High waveform accuracy: The output waveform is composed of function calculated values, with high waveform accuracy and low distortion. Multiple waveforms: sine wave, square wave, triangular wave, sawtooth wave wave. Sweep characteristics: With frequency sweep function, the sweep start and stop points can be set arbitrarily. Storage characteristics: It can store 10 sets of instrument status parameters set by users and can be called up and reproduced at any time. Operation mode: All button operations, LCD1602 LCD English display, direct digital setting or rotation The button is continuously adjusted. High reliability: Large scale integrated circuits, surface mount technology, high reliability, and long service life. Frequency measurement: Equipped with a 60MHz frequency meter function, it can measure the frequency of internal/external signals. It can communicate with a PC, making instrument operation more flexible and convenient.Small size, multifunctional, and convenient to carry. Specification: Signal Output: Output waveform: sine wave, square wave (duty ratio adjustable), triangular wave, sawtooth wave wave. Output amplitude: 10Vp-p (no-load) Output impedance: 50 10% DC offset: 3V Frequency range: FY2002S: 0.01Hz ~ 2MHz FY2005S: 0.01Hz ~ 5MHz FY2005S: 0.01Hz ~ 8MHz FY2010S: 0.01Hz ~ 10MHz Frequency resolution 0.01Hz (10mHz) Frequency accuracy 5 10-6 Frequency stability 2 10-6/3 hours Sine wave distortion 0.8% (reference frequency 1kHz) Triangular wave linearity 98% (0.01Hz~10kHz) Square wave rise and fall time 100ns Square wave duty cycle range 1%~99% TTL Output: Frequency range: 0.01Hz~2MHz/5MHz/10MHz Amplitude:>3Vpp Fan out coefficient:>20 TTL load Counter Function: Counting range: 0-4294967295 Frequency measurement range: 1Hz~60MHz Input amplitude: 0.5Vpp~20Vpp Sweep Function: Sweep mode: linear scanning, logarithmic scanning Frequency setting range: 0.01Hz~2MHz/5MHz/10MHz Frequency sweep range : M1 preset frequency~M2 preset frequency Sweeping rate: 1s~99s/step Other Function: Display Mode: LCD1602 LCD English display Storage and call in function: M0-M9 (M0: default call in) Size: 95mm 65 mm 30mm Buzzer prompt function: can be turned on or off through program settings Manufacturing process: surface mount technology, large-scale integrated circuits. High reliability and long service life. Operating characteristics: All button operations, continuously adjustable knob. Environmental conditions: Temperature: 0-40 Humidity: 80% Package Included: 1 x FY2000S DDS Function Generator 1 x DC 5V Power Adapter _x000D_
