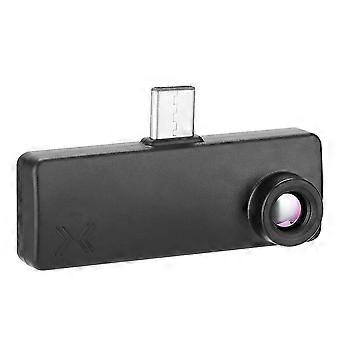

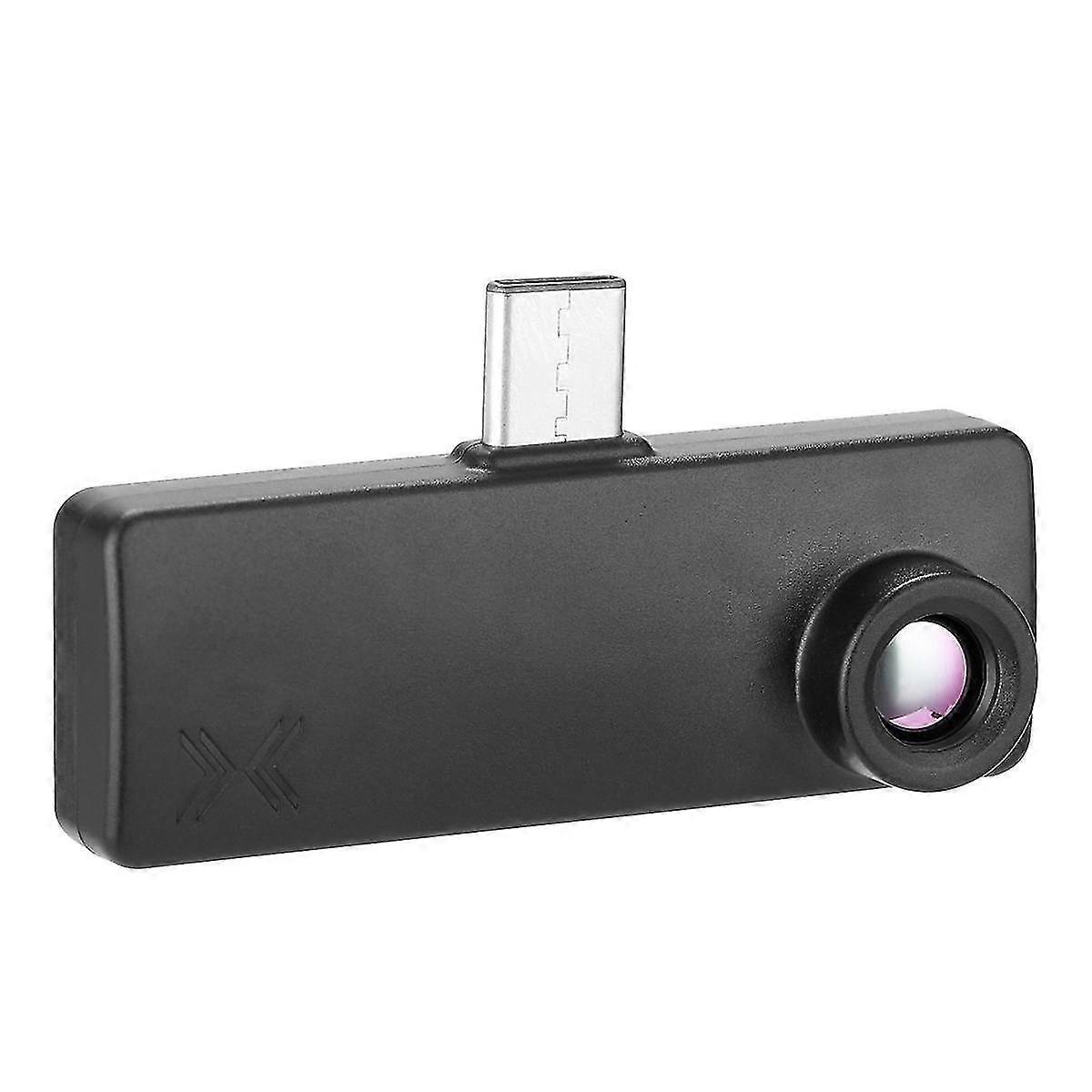

The product provides you a new way to sense the invisible, measure the unfathomable, and analysis the improbable by providing thermal-image and temperature measurements in a new way. You can download and install the Meridian SenXorProViewer App. After installation, plug in the and make sure host device support USB OTG. When everything is ready, just press Starts-button and enjoy. Emissivity: It quantifies the ability of an objects surface to emit long-wave infrared radiation and strongly affects the temperature readout from the . Most of the objects with matt surface is about 0.95 as well as human skin (0.95 - 0.97). Metals tend to have dramatically lower emissivity, sometimes as low as 0.1 according to their surface processing. Fever Detection (Beta): Assume that a person facing towards the camera, experimentally detect and measure the forehead surface and core temperature with proprietary human modeling. User can control part of the parameters to fine tune the readout in the third page of the panel. This feature can be turned on in the settings. Suggested distance: 0.7m-2.0m. Filtering: User can control several images filtering to reduce noise level of the temperature data. It gives better performance once these are turned on at run time. Swipes the page indicator to second page, adjust filters by dragging the corresponding bar. Recording: User can record the video that takes the main screen streaming from the app by clicking Video button. Recorded video will be saved in default DCIM/MeridianInnovation folder that should be to show in system albums after stop recording. Features: Settings: Temperature Unit, Emissivity, Fever Detection, Font Size, Over-temperature Alarm, Palette, Auto Scale. Features List: Horizontal Flip, Reset, Video Recording. Main screen: Control the -hair by tapping/dragging in this area. Color Palette List: 16 preset palettes are provided for visualization , temperature data is not affected. : The bar with knots represents how the color maps to scene temperatures. Auto Scaling Button: When enable, the scene temperatures will be fully spread over the palette. Page Indicators: Swipe-on the dots to change the panel content. Panel: Information Center | Sensors control | Fever Detection. Inform dialogue: Shows the temperature where -hair pointing to and control message. Specifications: Name: Type-C Infrared Thermal Imager Material: plastics Color: black Resolution: 80 x 62 FOV (angles in degrees): 44.2(H), 34.5(V) Maximum frame rate: 15 FPS Max scene temperature range: -40C to 1000C NETD: 150mK Accuracy up to: 1 Operating temperature: -20 to 85 Storage temperature: -40C to 85C Power consumption: 300mW Android-Dongle connector: USB Type-C Item size: 56 x 30 x 14mm / 2.20 x 1.18 x 0.55in Package Contents: 1 x Infrared Thermal Imager Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
