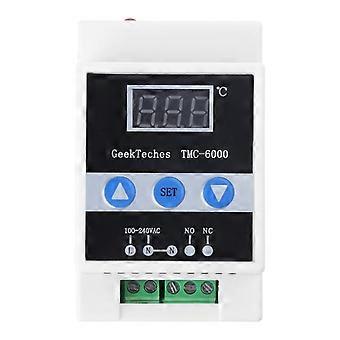

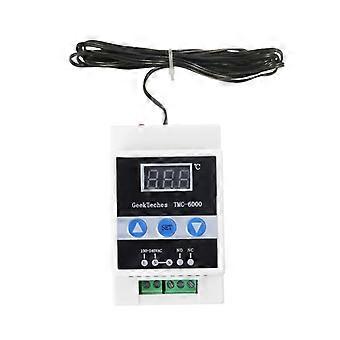

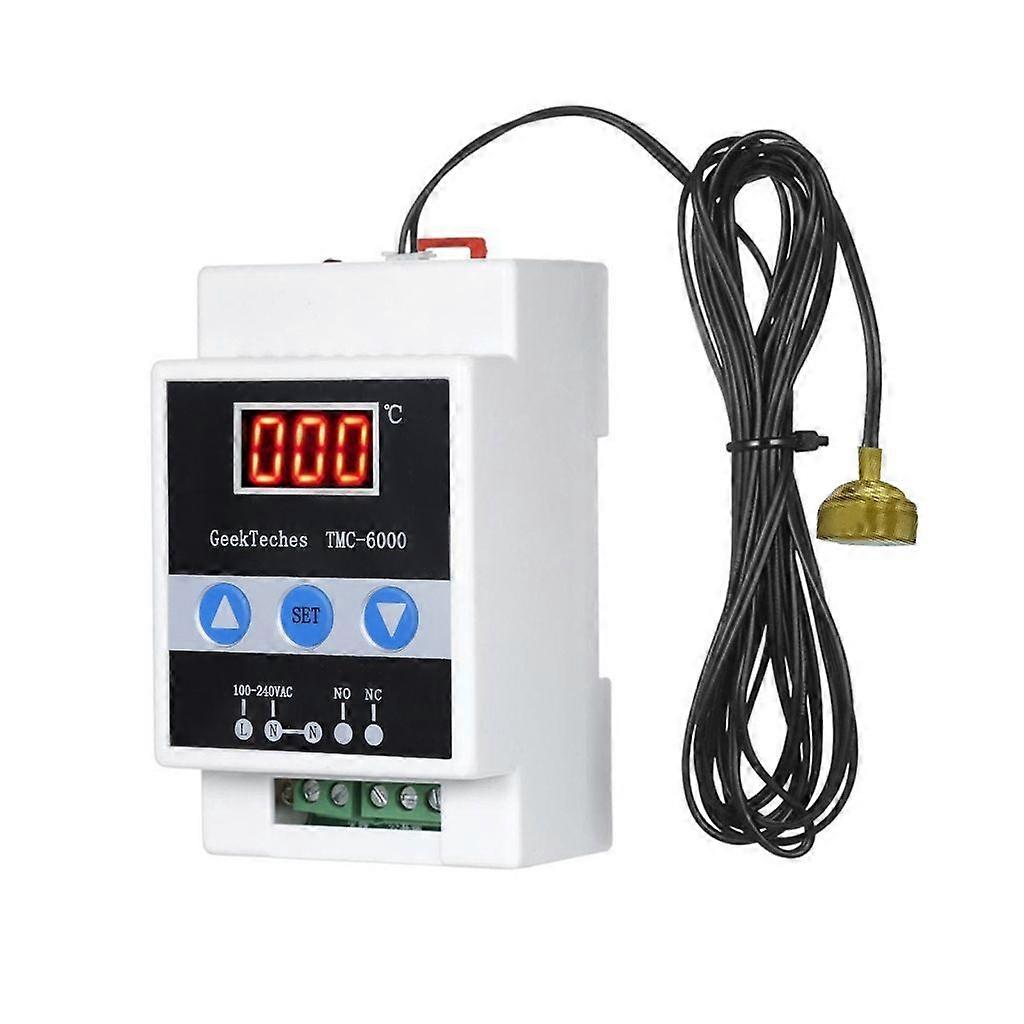

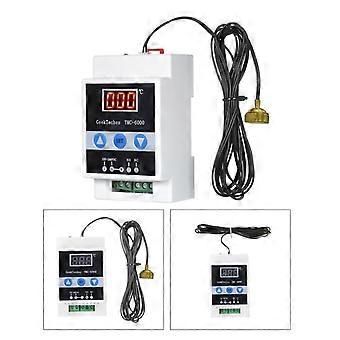

Digital Temperature Controller 3-digit LED Display for Aquarium/Aquaculture

Features: One-way thermostat can be set to "cooling" or "heating", widely used in various refrigeration and heating occasions. Temperature is controlled by a general-purpose 10k NTC thermistor, and the output of a single relay (NO, NC) is controlled. Adopts noise rail installation method, which is convenient and quick to install. Advanced power isolation design ensures that the controller works continuously, reliably and continuously when the power supply varies between 100V~250V ADC. Suitable for aquarium, incubation room, aquaculture, feeding animals, greenhouse etc. Specifications: Material: Metal+PC Size: Approx. 93x55x44 mm/3.66x2.16x1.73 inch Model: TMC-6000 Probe model: magnetic probe Installation mode: standard din rail installation or fixed installation Display: 22x11mm 3 digits LED display Power supply: adc 110-240v Power : 2W Buttons: press-type membrane keyboard Input: One-way thermistor temperature sensor output (10K) NTC, measurement range from -50 degrees Celsius ~ 120 Celsius Working temperature: -10 celsius 50 50 celsius Measuring range: -50 degrees celsius ~ 120 celsius Setting range: low limit: -45 degree celsius controlled temperature controlled, high limit: controlled temperature ~ 110 celsius Control Range: -45 Celsius 110 Celsius Temperature Control Return Difference: 1 Celsius 30 Celsius Delay Time: 0 300s Deviation Correction: -25 Celsius 25 Celsius Item Output: 1. Single-circuit relay without contact is used for cooling output, and NC contact is used for output heating. 2. The current output contact capacity is limited load 5a and inductive load 1a. It can control 1000w electric heating or 200w electric motor or water pump. AC contactors are required to expand capacity to accommodate higher loads. Note: Max charging current of this product is 10A, please ensure that it is allowed (about 6A) during long-term use to increase the use for time. Package includes: 1x Temperature Controller 1x NTC Temperature Sensing Line
