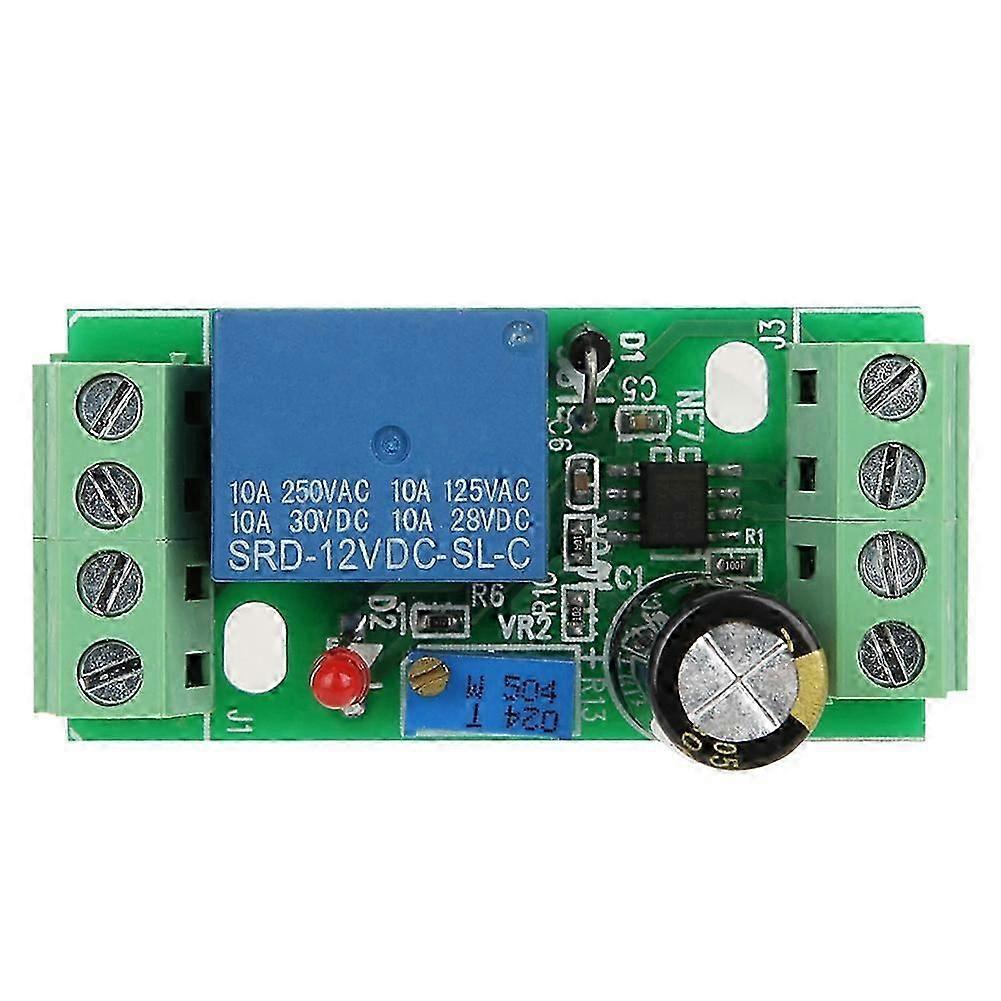

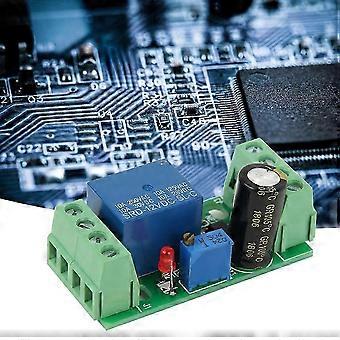

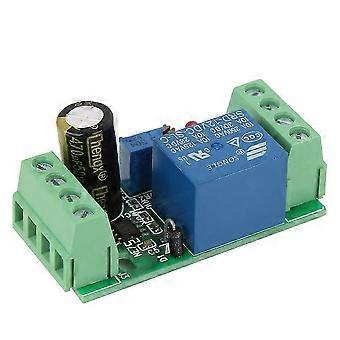

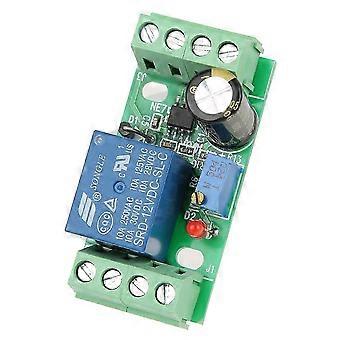

Delay Switch Connect Module Adjustable Time Delay Relay with On and Off Indicator 12V

Feature:1. When power-on or an external key switch is triggered, the relay delay is adjustable from 1 second to 10 minutes. The relay contact is opened or closed.2. With relay on and off indicator3. When the time action is less than about 0.5 seconds, the relay is turned off to protect the delayed drive IC.4. Elliptical design of mounting holes for quick and easy installation5. Delayed turn-on of the power supply that can be used to control the high-voltage screen of a tube amplifier6. Monostable working mode, externally connected with a normally open button, can perform conventional monostable control7. Applicable to other occasion that require delay control, can be used for access control8. Multiple circuit modules are combined together to achieve linkage delay control, intelligent control, and simple PLC controlSpecification:Item Type: Delay Switch ModuleInput Voltage: 12VInput Current: Greater than or equal to 50MA.Controlled Switching Parameters: Voltage 0-240V, AC / DC, current 0-10A.1 Second to 3 Minutes Delay Board: 470UF capacitorInstructions: 1. Blue potentiometer, turn CW to shorten delay time, turn CCW to lengthen delay time2. After the delay time is set for this delay board, the trigger delay is performed as soon as the power is turned on (the indicator is on). Triggering again at this time will delay again.Immediately after the trigger (a short time), a click sound is heard, and the continuous trigger has a continuous click sound, which indicates that the delay has reached the shortest time is 0 seconds. At this time, you can adjust the potentiometer CCW and trigger again, Slowly adjust to the required delay time.3. Remember: The power supply cannot be greater than 12V, and the positive and negative of the power supply cannot be reversed..Package List:1 x Module
