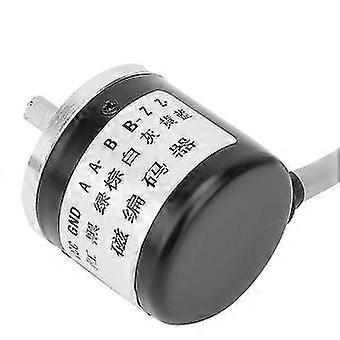

Features: It has the advantages of small size, light weight, compact structure, easy installation, etc. Application: It is suitable for intelligent control of various displacement change measurement, automatic fixed length automatic suede machine, steel fixed length cutting controller, civil height measuring human body scale, college student competition robot, etc. Internal ASIC devices, high reliability, long life, strong anti-interference performance Stainless steel spindle with higher stability and protection ability, metal shell more solid impact resistance. Output mode: voltage output, collector output, complementary output, push pull output, long line drive output, differential output, fork output Specification: Model: HAJ1024 Readout mode: non - contact Output mode: voltage output, collector output, complementary output, push pull output, long line drive output, differential output, fork output Output phase: A, B External diameter: 38mm The diameter of axle: 6 mm Standard length of wiring wire: 1.2m Resolution (pulse/rotation) : 1024P/R Wiring method (8 wires) : Brown wire: dc5v (positive pole) Blue wire: 0V (negative pole) Black wire: A(phase) White wire: B(phase) Shielding network cable: N.C (ground) Output A difference: A, B phase difference of 9045(1/41/8T) Output mode: NPN open collector output Output capacity: external voltage: under DC30V, synchronous current: under 35mA, residual voltage: under 0.4v (synchronous current: under 35mA) Output up and down time: 1 s or less Control the output voltage: 5 v load resistance 1 k Starting torque: below 0.9mN.m Inertia moment: 1 x 10-6kg.m2 (below 600 pulses/rotation: 3 X 10-7kg.m2) Axial allowable force: Radial: 30 N The axial: 20 N Maximum number of rotations allowed: 6,000r/min Protection circuit: load short circuit protection, power supply reverse wiring protection Ambient temperature range: action: - 10 ~ + 70, save: - 25 ~ + 85(not frozen) Range of ambient humidity: 35 ~ 85%RH each during operation and preservation (no condensation) Insulation resistance: more than 20m (DC500V Megohmmeter) of charge between the whole and the shell Voltage resistance: AC500V 50/60hz 1min between the whole charging part and the shell Vibration (durability) : 10 ~ 500Hz complex amplitude 2mm or 150m/s2 Impact (durability) : 1,000m/s2 3 times in X, Y and Z directions Material: Case lead alloy,Body aluminum Cable length:1.2m/3.9ft Package list: 1 x Encoder Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
