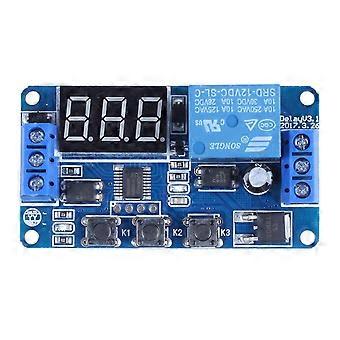

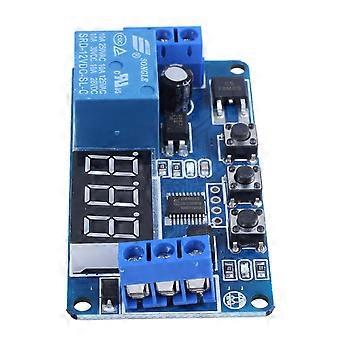

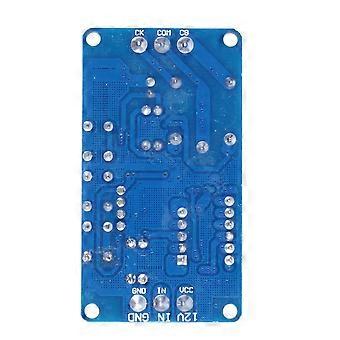

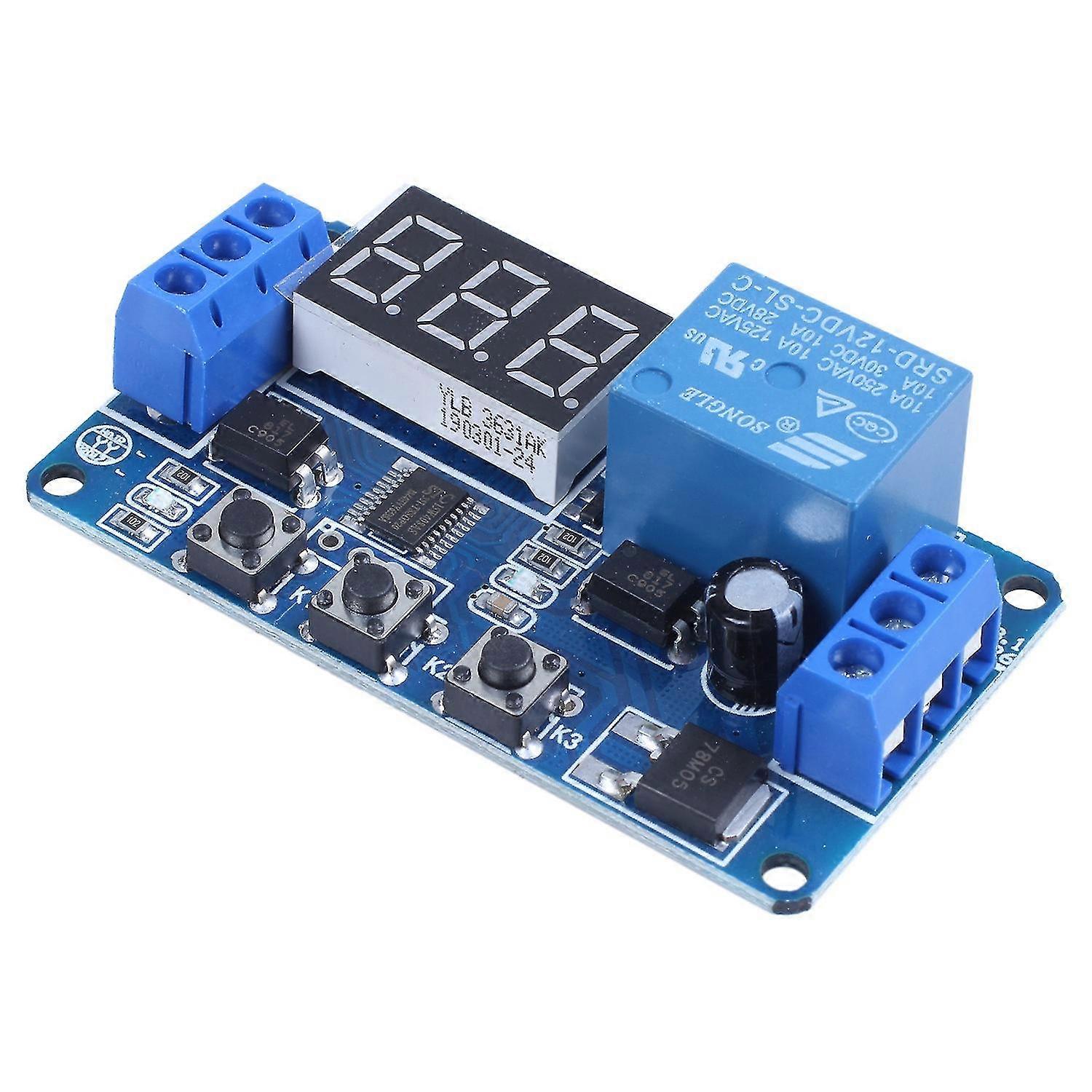

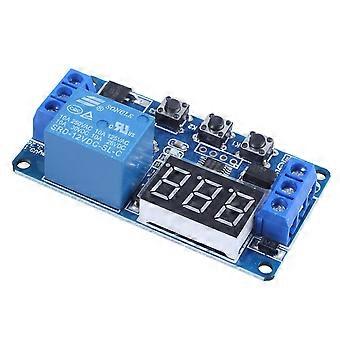

Automation Dc 12v Led Display Digital Delay Timer Control Switch Relay Module

Increase the supply anti- reverse function. Set parameter after power for perdurable memories. Signal terminal voltage signal can be maintained for a longtime. To the stability of industrial grade board, class PLC. Size: 64.2mm x 34.8mm x 18.5mm/ 25.28" x 13.7" x 7.28" Working mode :After power on,long press K12 seconds later into the select function mode,P1-1~P1-4 for . P1-1 operating modes:a signal to trigger relay,time is up,the relay disconnect users,You can set relay time T,click K2 the hundred digital tube starts flashing,then press ,the hundred digital change;click K2 ten digital tube starts flashing,then press ,ten digit changes;click K2 bit digital tube starts flashing,then press ,single-digit change;then click K2,digital pipe does not blink,then press the ,shifting the decimalpoint,the decimal pointin abitindicates 0-999minutesin ten represents 0 to 99.9 seconds withou tadecimal poin trepresents 0-999 seconds;goodchoice,bringing the time setting is completed. P1-2 operating modes:Asignal trigger ,digital countdown begins,X seconds after,there lay open Y seconds,then . Users can set the relay time X,Y;P1-1different time settings similar to the blue lights that set the relay time,blue light indicates setting relay off time. P1-3 operating modes:Open X seconds,disconnect Yseconds, loop.Users can set the relay ,Y;time setting similar to P1-2. Relay Specifications:AC 220V 10A or DC 30V 10A. Quiescent Current:20mA,Operating Current:50mA. Working voltage:10~16V(if other ranges can be customized). Signal voltage:4V~20V(if other ranges can be customized). Life:about 100,000 Working temperature:-40~85'C. Material: circuit board Package Includes: 1 x DC12V Delay Timer Control Switch Module Note:Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/-1-3cm.
