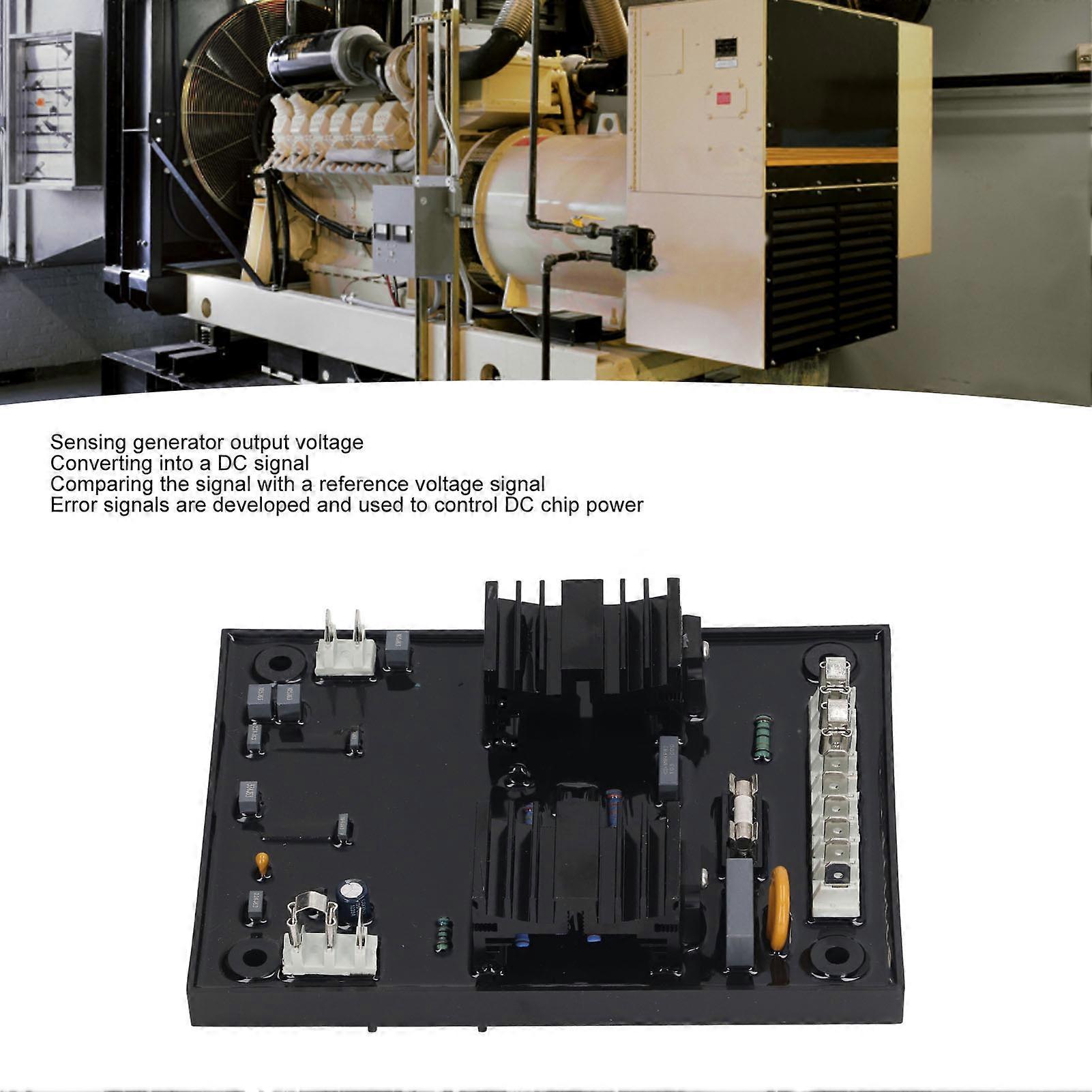

Feature: 1. FIELD PARAMETERS: AVR control the DC exciter field power of conventional 50 or 60 Hz brushless generators that have a maximum 63V DC exciter field to regulate the generator output voltage 2. HOW IT WORKS: The regulator is provided by sensing the generator output voltage, converting into a DC signal and comparing the signal with a reference voltage signal 3. STABLE OUTPUT: Error signals of regulator are developed and used to control DC chip power to maintain constant generator output 4. SUPPORT GRID CONNECTION: General use grid connected generator automatic regulator plate can be used for two generators grid connected power generation 5. EXCELLENT PERFORMANCE: Generator AVR is made with fine workmanship, possess compact appearance and stable performance, can make sure durability and stability Specification: Item Type: Automatic Voltage Regulator Output Voltage(DC): Maximum continuous 6A, 100Vdc(240Vac input) Maximum Output Current(DC): Maximum 15A, 1 minute Excitation Winding Resistance: Minimum 6Ω Input(AC): 180-250Vac, 50/60Hz Power: Maximum 1000VA(240Vac) Signal voltage(AC): 180 to 250Vac(220Vac system) single phase 350 to 460vac(400Vac system), 50/60Hz Power Consumption: 5A Voltage Adjustment Range: 180~250Vac; 350~460Vac Pressure Regulation Accuracy: 0.5% Voltage Temperature Drift: ≤±0.2% or 10℃(50℉) Response Time: ≤1 Cycle Building Voltage: Remaining excitation voltage of generator built automatically, 9Vac, 35Hz Power Consumption: Maximum 40W Parallel Connection: CT: Common current transformer with rated current ratio of 1 Droop: 0 ~5% 0.8 power factor Automatic regulator plate for general purpose grid connected generator Automatic regulator plate for general purpose 6Amp generator can be used for grid connected generation of two generators. Package List: 1 x Automatic Voltage Regulator
