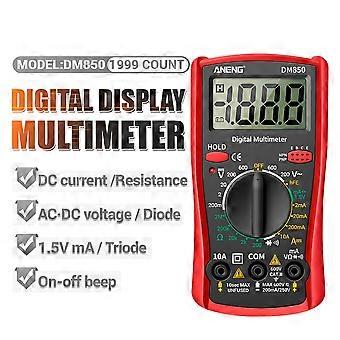

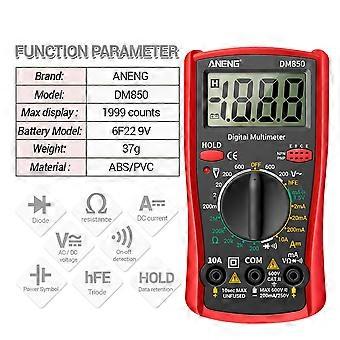

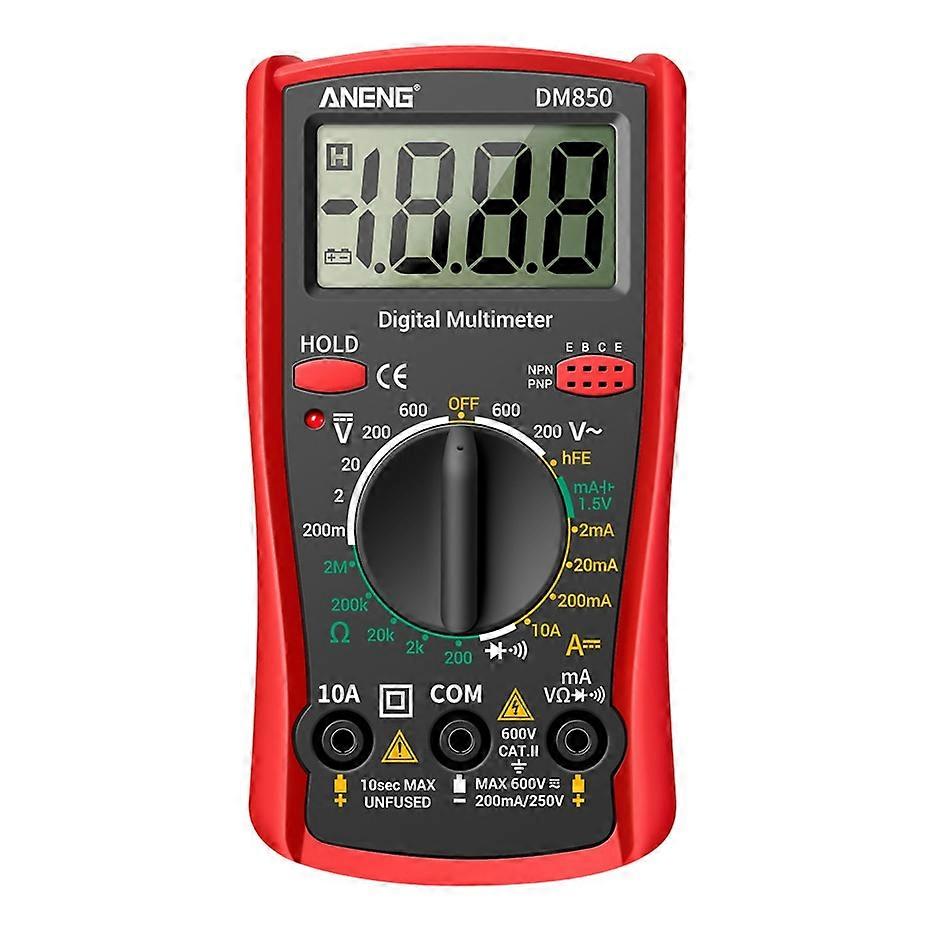

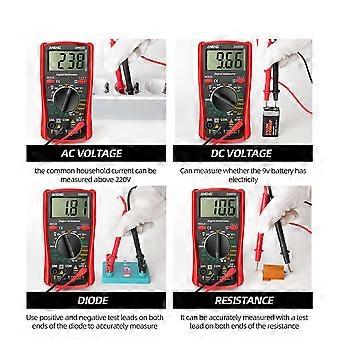

• This instrument is a compact pocket-sized digital multimeter for measuring AC & DC voltage, DC Current, Resistance and Diode • Also provide Temperature, audible continuity test function or can be used as single generator • Full range overload protection and battery indication are provided • They are the ideal instrument for use in fields, such as laboratory, workshop, DIYers, and the home applications • The meter is used for AC current, DC current, AC voltage, DC voltage, frequency, resistance, capacitance, temperature, diode, line continuity and non-contact voltage detection • The meter has a reading hold function Specifications: • Display: LCD • Max display: 1999 counts •Battery Model: 6F22 9V •Weight: 37g •Material: ABS/PVC • Sampling time: about 3 times/sec • Battery type: 6FF22 9V battery (not included) • Size: 139*74.5*33.6mm • Working temperature: 18℃ - 28℃ • Storage temperature: -10℃ - 50℃ • DC Voltage: 200mV + -(2% of rdg+3D) 2000mV/20V/200V + -(2% of rdg+5D) 600V + -(2.5% of rdg+5D) • DC Current: 200uA/2000uA/20mA + -(2% of rdg+2D) 200mA + -(2.5% of rdg+2D) 10A + -(2.5% of rdg+10D) AC Voltage: 200V/600V + -(2% of rdg+10D) • Frequency Range: 45Hz~450Hz • Audible Continuity Test: Yes • Resistance: 200Ω + -(2.5% of rdg+10D) 2000Ω/20kΩ/200kΩ/2000kΩ + -(2.5% of rdg+4D) • Overload Protection: 15 second Package included: •1 x Multimeter •2 x Test Leads •1 x English and Chinese User Manual
