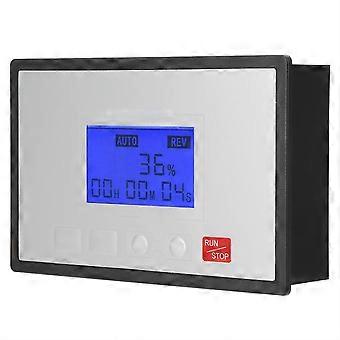

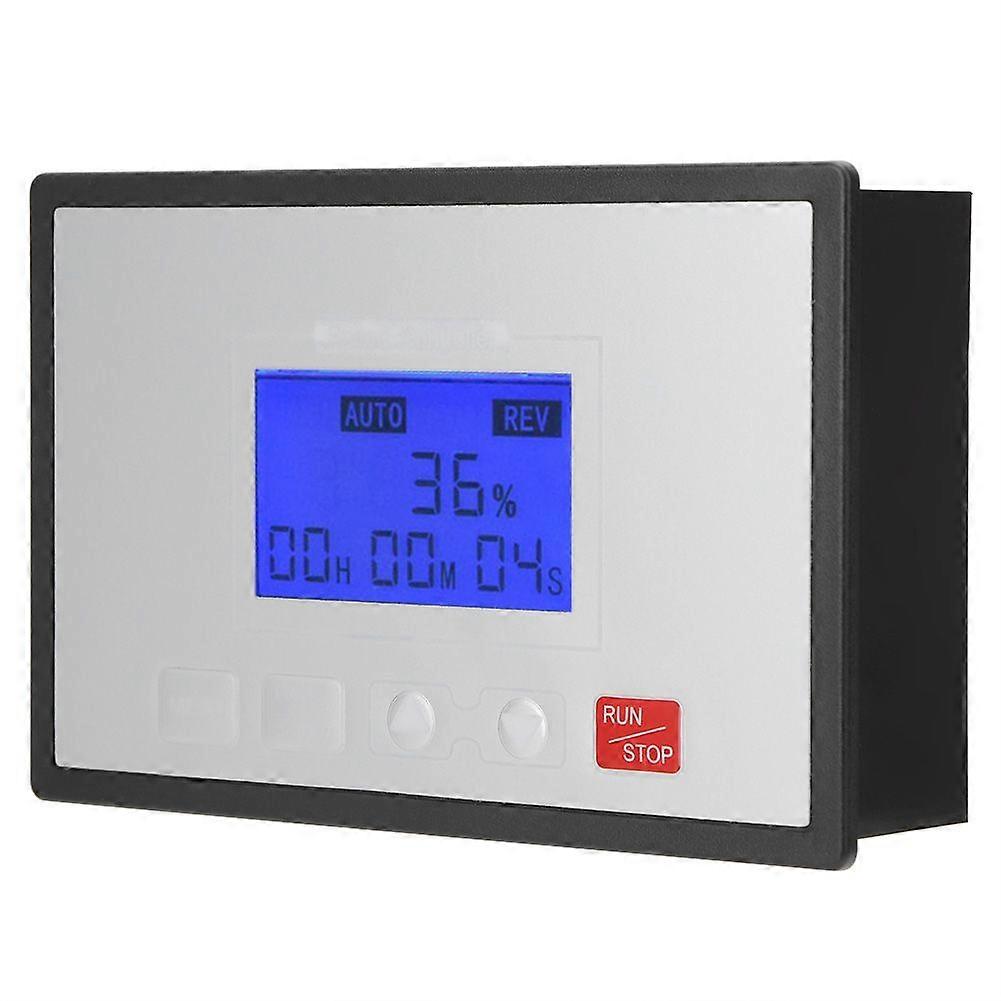

60A 10-55V DC Brush Motor Speed Controller Digital LCD Slow Run/Stop Timer Reversible

Feature:1. Backlight LCD screen displays working time, 0-100% speed percentage, current mode and forward/reverse status.2. Multiple limit modes are optional, can set the slow start and stop time.3. Can set upper limit and lower limit of the speed.4. Can set the total working time, the motor stops when the time is up.5. Support independent speed regulation of forward speed and reverse speed.6. Manual and automatic modes optional, the motor automatically rotate forward/reverse within the set time under automatic mode.7. Touch switch to switch forward and reverse status, jog acceleration and deceleration, solve the problem that the traditional potentiometer is easily damaged.Specification:Item Type: DC Motor Speed ControllerInput Voltage: DC10-55V (the specific voltage must be equal to the rated voltage of the motor)Output Voltage: Linear under loadInstantaneous Current: 60A Continuous Current: ≤40ASpeed Regulation Type: Current RegulationSpeed Adjustment Method: Jog + -Timing: YesLimit Function: YesSlow Run Slow Stop: Can be setSpeed Digital Display: 0-100 percentageSpeed Range: 0-100%Control Frequency: 15KHZConnection Type: Fence type terminalSupport Motor: Brush MotorModule Size: 148x95x36mm / 5.83x3.74x1.42inMounting Size: 142x88mm / 5.59x3.46inInstallation Method: EmbeddedFunction:0-1-2-3-4-5-6-7-8-9 function settings are as follows:Manual Automatic Mode Selection Function 0: 1 is manual mode, 2 is automatic mode, default is manual mode.Slow Run Time Setting Function 1: 000-100, slow start to 100% speed, adjustable time 0-10s, default is 1s.Slow Run Time Setting Function 2: 000-100, slow stop, adjustable time 0-10s, default is 1s.Speed Lower Limit Setting Function 3: 000-080, adjustable minimum speed 0-80% and less than the maximum speed setting value, default is 0.Speed Upper Limit Setting Function 4: 000-100, adjustable maximum speed 0-100% and greater than the minimum speed setting value, default is 100%.Acceleration/Deceleration Value Setting Function 5: 001 002 005 010 015 020 025, each time the key increase/reduce is pressed, the speed changes by 1%, 2%, 5%, 10%, 15%, 20%, 25%.Motor Running Time Setting Function 6: 1s to 99h 59min 59s, default is 99h 59min 59s.The following functions 7-8-9 are time setting in automatic modeForward Rotation Time Setting Function 7: 0s-99h, default is 10sStop Time Setting Function 8: 0s-99h, default is 10sReverse Rotation Time Setting Function 9: 0s-99h, default is 10sLimit Mode Selection Function E:E1: No limit, default is no limitE2: After pressing start, the motor rotates forward to the forward limit and stops. After pressing start again, the motor rotated reverseE3: After pressing start, the motor rotates forward to the forward limit, and then rotates reverse to the reverse limit, finally motor stopsE4: After pressing start, the motor rotates forward to the forward limit, and then rotates reverse, cycle working.Package List:1 x Motor Speed ControllerNote:The input positive pole and negative pole must be connected correctly. The input voltage(10V-55V) must be equal to the rated voltage of the motor.
