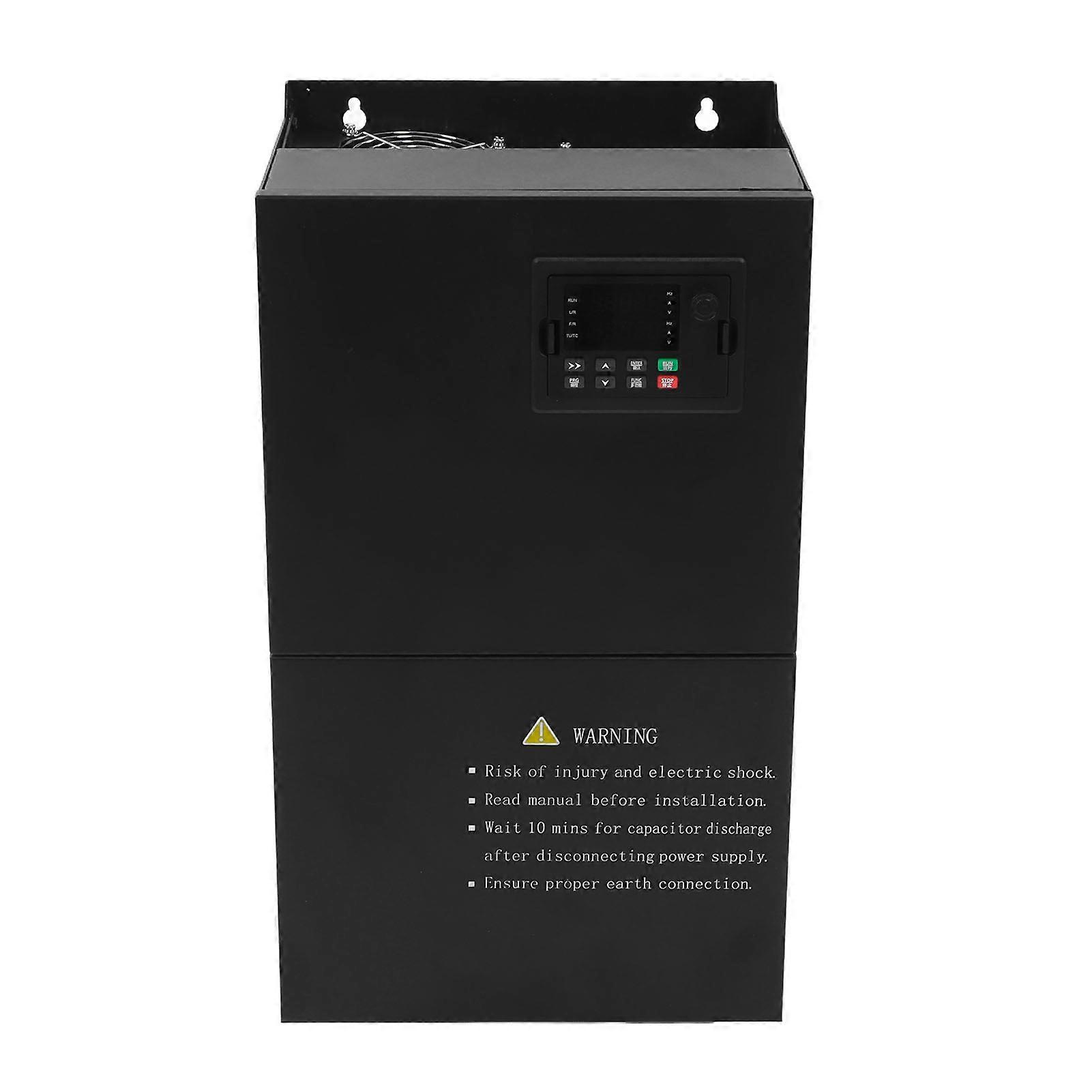

Feature: 1. IGBT MODULE AND AIR DUCT: This frequency inverter adopts integrated IGBT module, with great load carrying capacity and better stability, independent air duct design, superior stability performance. 2. DISPLAY AND MOTOR SPEED REGULATION: This frequency inverter is a double rows digital tube display, is widely used for speed regulation of various 3 phase asynchronous motors to realize the functions of motor speed regulation, energy saving and environmental protection, and improving production efficiency. 3. OVERVOLTAGE SUPPRESSION PROTECTION: To ensure that the frequency converter does not cause overvoltage protection due to high voltage of the bus. When the bus voltage reaches or exceeds the overvoltage suppression point during the operation of the frequency inverter, the inverter will automatically adjust the operating frequency to suppress the bus voltage increase. 4. OVERCURRENT SUPPRESSION PROTECTION: To prevent fault tripping caused by excessive current. Suitable for loads that vary dramatically. Variable frequency drive automatically limit the load current from exceeding the set overcurrent suppression point through realtime monitoring of the load current during operation. 5. ALUMINUM ALLOY: Variable frequency drive is with low frequency and large torsion, high impact and high heat resistance. Made of aluminum alloy. Specification: Item Type: Variable Frequency Drive Material: Aluminum Alloy Input Voltage: 3PH AC400V±15% 50-60Hz Output Voltage: 3PH AC0-400V 0-400Hz Output Current: 110A Applicable Motor: 55KW. Category Terminal Icon Paragraph name Function Description powersupply 10V GND External + 10V powersupply External supply of+10V power supply, maximum output current: 150mA (with short circuit protection) Generally used as an external potentiometer working powersupply, Potentiometer resistance range: 1k Ω-5k Ω 24V COM External + 24V powersupply External supply of+24V power, generally used as digital input and output terminals Power supply and external sensor power supply Maximum output current: 200mA Analog terminal Al1 GND analog input Input terminal 1 1. Input range: DC0V-10V or 0mA-20mA, determined by parameters P437 Decision 2. Input impedance: impedance at voltage input 22k Ω, impedance at current input 500Ω AI2 GND analog input Input terminal 2 1. Input range: DC0V-10V or 0mA-20mA, determined by parameters P4-37 Decision 2. Input impedance: voltage input impedance 22kQ, current input impedance 500Ω AO1 GND analog input Outlet terminal 1 Output voltage range: 0V-10V Output current range: 0mA - 20mA, 4-20mA (P5-23 selectable) AO2 GND analog input Outlet terminal 2 Output voltage range: 0V-10V No current output function J1 jumper cover on isolated main control board to AO2 position, non isolated main control board The control board does not have this function. Digital input X1 COM Digital input 1 HD1 (X5) can also be used as a high speed device in addition to the features of X1 to X4 Pulse input channel. Maximum input frequency: 50kHz 1. Input impedance: 1k0 2. Voltage range at level input: 5V-30V X2 COM Digital input 2 X3 COM Digital input 3 X4 COM Digital Input 4 HDI COM Digital input 5 (X5 terminal) High speed pulse input terminal A+ B- RS485 communication A+is the positive input of the 485 communication differential signal, and B - is the negative input of the differential signal Digital output Y1 COM Open collector output When used as a collector open circuit output terminal (J1 jumper cover on the 90 isolated main control board to the AO2 position) HDO COM High speed pulse output Restricted by the function coding P5-00 "HDO terminal output mode selection", it is output as a high speed pulse with a maximum frequency of 50 kHz; When output as a collector open circuit, the specification is the same as Y1. K1A K1B K1C Relay 1 terminal Contact Description: A: Common point B: Normally closed point C: Normally open point Contact driving capacity: AC250V,3A, C0S φ= 0.4 DC 30V, 1A DC 30V, 1A . Package List: 1 x Variable Frequency Drive1 x Instruction Manual Note: Pay attention to electricity safety.
