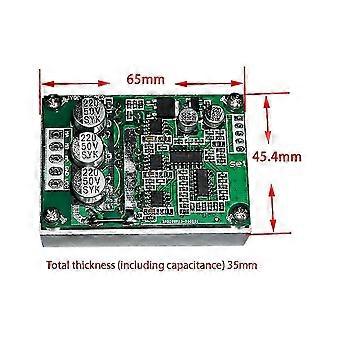

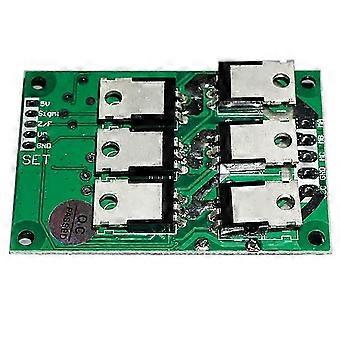

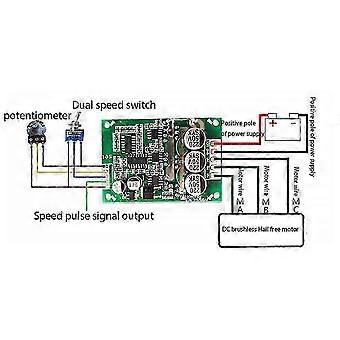

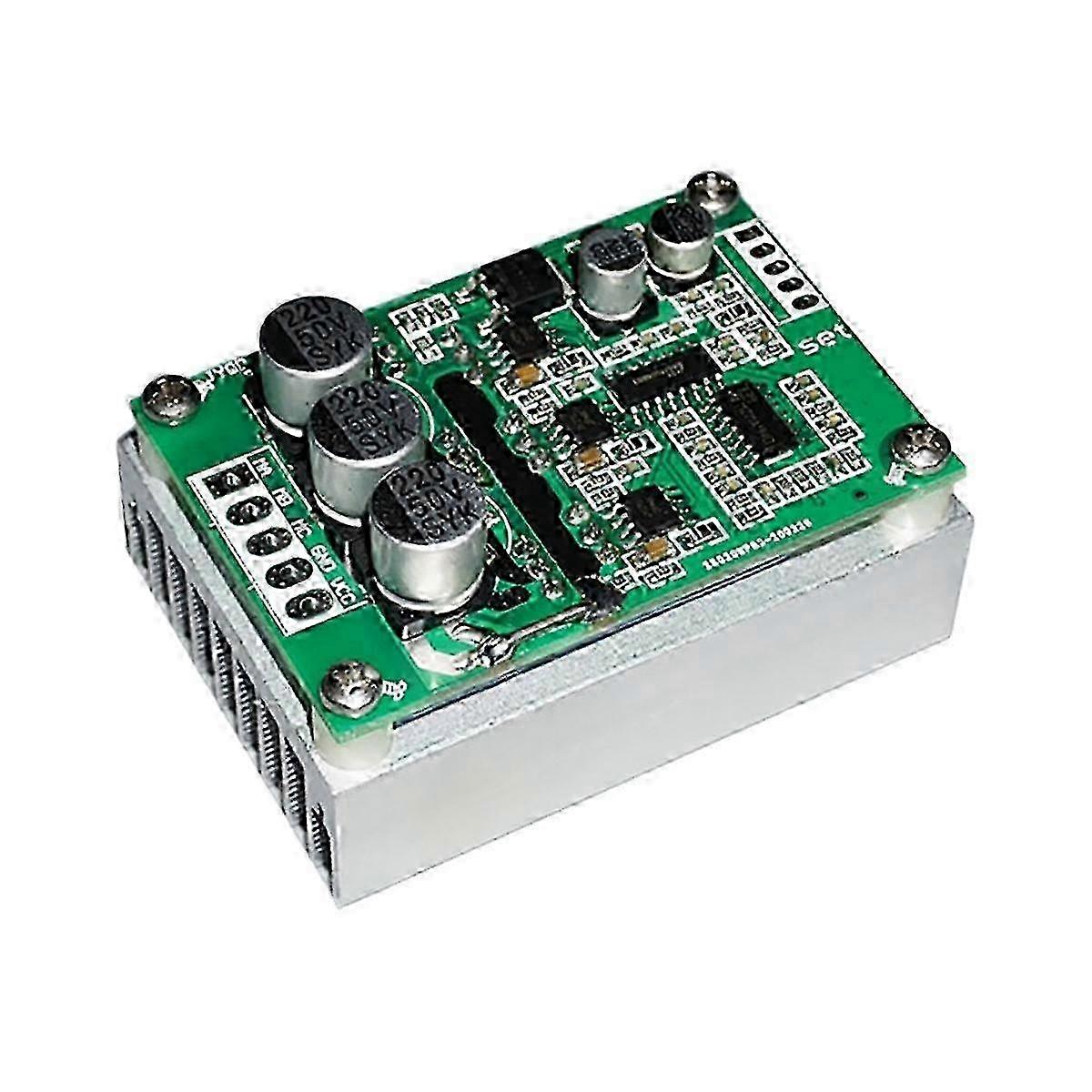

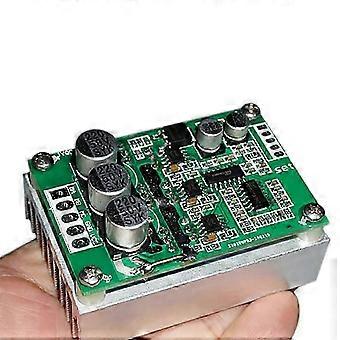

High power Hall free brushless drive, with a wide voltage of 12-36V, a maximum current of 15A, and a maximum power of 500W. Most motors have been tested for good compatibility, while a small number of motors may not be fully compatible. It is necessary to test yourself. It is best to use an adjustable power supply current limiting mode to test whether the actual no-load current is abnormal, in order to prevent the high power from burning during abnormal moments. supports positive and reverse switching, and the potentiometer is used for speed regulation. Generally, the potentiometer can be used for 10-50K, or it can also be used for speed regulation with PWM 5V signal. It is strictly prohibited to connect the positive and negative poles of input power incorrectly. The output UVW three-phase should not be short circuited, or burn. is equipped with 18mm thick heat sink. The use of high power depends on the actual heating size. If the heating is large, a fan should be added for forced air cooling. There is no socket and wire on , and it needs to be welded by its own electric soldering iron. The forward or reverse switch and speed regulating potentiometer need to be prepared by itself. The soldering iron must be well grounded to avoid inductive damage to . Specifications: Voltage range: 12V-36V current: 10A Drive power: 500W (related working voltage) Speed control function: voltage speed regulation or single chip Microcomputer control PWM speed regulation Material: plastic colour: green Package Contents: 1 x Motor Speed Controller Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is 1-3cm.
