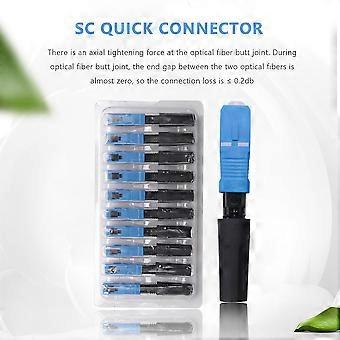

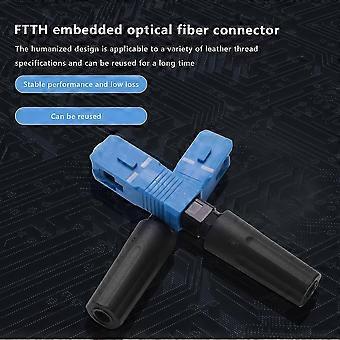

Fiber Optic Fast Connector Connector Field Assembly Field installable Insert loss less than 02dB Metal V-shape cavity work well in high and low temperature Installation less than 1 minutes Reliable and superior optical performance Cable Tensile test complies with Telcordia -326-COR Application: 1. Distribution frames 2. Maintenance or emergency restoration of fiber networks 3. Patch panels 4. FTTH Outlets 5. Field word Connector Type:/UPC Compatible:Ericsson Compatible:Brocade Compatible:Mellanox Compatible:Enterasys Compatible:Zyxel Fiber Type:Single Mode Applicable Cable:09mm, 20mm, 30mm Cable; 20x30mm FTTH Drop Cable Fiber Diameter:125um Coating Diameter:250um Insertion Loss:02dB (max. 05dB) Return Loss:Over 50dB Tensile Strength:Over 30N Temperature Cycling:IL Less than 03dB; RL Less than 5dB Assembly Repeatability:5 times Installation Durability:Over 500 times Atmospheric Pressure:60kpa~160kpa Operating Temperature:-40 to 85 degree Celsius Storage Temperature:-40 to 85 degree Celsius colour:blue Material:plastic size:60*9mm Package Contents: 50 * Embedded UPC Fiber Optic Fast Connector Only the above package content, other products are not included. Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
