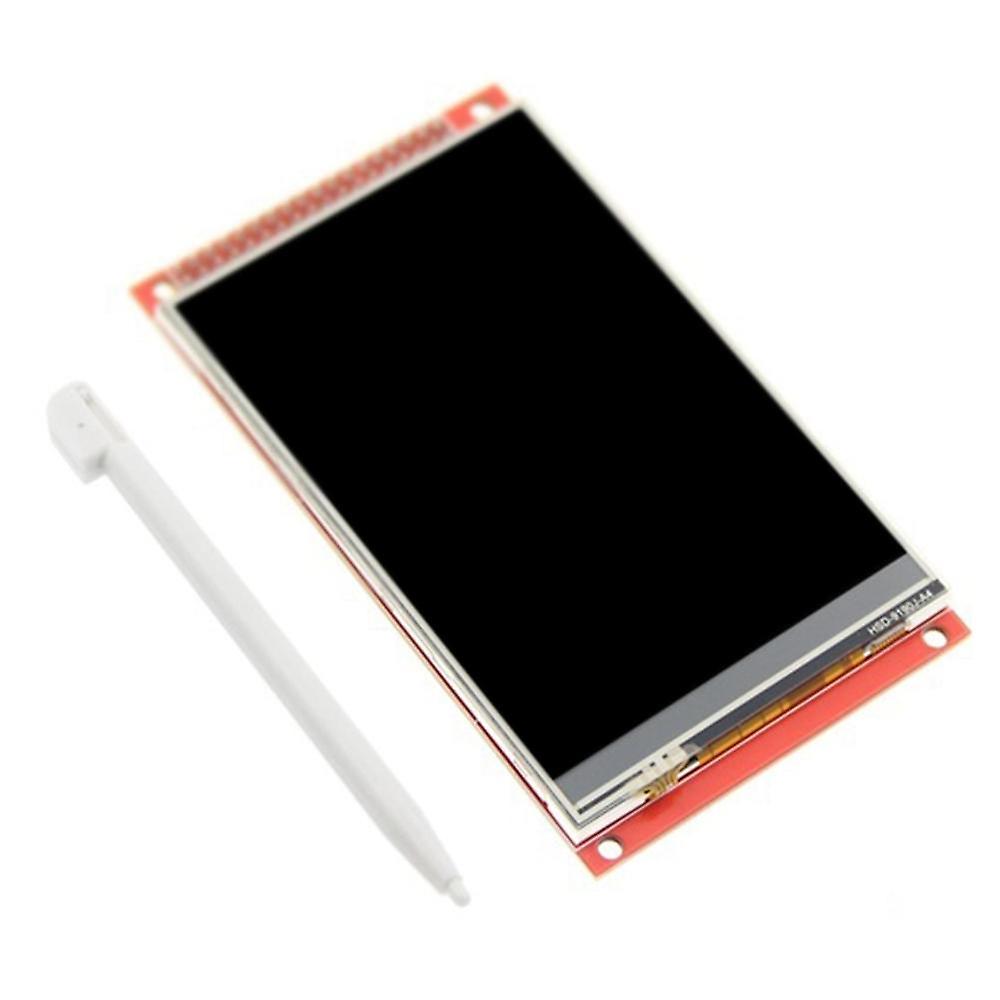

3.95/4.0 Inch Tft Color Screen Module Touch Screen Module 320x480 Hd Display For

The for development board can be used directly without wiring.3.95-inch color screen, support 16BIT RGB 65K color display, display colors.480x320 resolution, the display effect is clear.Supports 8-bit and 16-bit parallel bus transfers (default 8-bit mode).Onboard 5V/3.3V level shifting IC, compatible with 5V/3.3V working voltage.Support touch functionProvide library and sample programsAvailable for C51 and STM32 platforms and provides sample programsSupport SD card function expansionHigh-grade process standards, long-term stable workProvide low-level driver technical supportDriver chip: ILI9488Effective display area (AA area): 83.52x55.68(mm)Module PCB backplane size: 61.54x105.69 (mm)Backlight: 6 chip HighLight white LEDsWorking voltage: 3.3V/5V consumption: 5V@150MAType: TFT color screen moduleFeature 1: LCD screen moduleFeature 2: 320X480 Ultra HD LCD screenFeature 3: TFT color screen modulecolor:RedMaterial:PCBPackage Contents:1 x Color Screen ModuleOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
