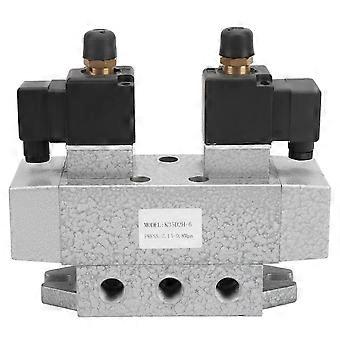

Feature: 1. Adopts spacer-type spool valve structure, which is very reliable in performance, and has a long service life while having strong performance. 2. The structure of the solenoid valve has an automatic compensation function for sealing wear. 3. With greater flow capacity, which can meet the needs of large flow media. 4. The base plate uses a takeover structure to make installation and maintenance work more convenient. 5. In the control mode, is divided into single and double air control and single and double air control introduced from the bottom plate, and divided into 2-position 5-way and 3-position 5-way in function subdivision. Specification: Item Type: 3 Position 5 Way Pneumatic Solenoid ValveMaterial: Aluminum alloy Model: K35D2H-6 Interface Diameter: G1/8in Pressure:0.2～0.8mpa Reversing Time: ≤0.06s Maximum Allowable Commutation Frequency: 8Hz Drain Flow: 50cm³/min Ambient Temperature: -5--50℃ Medium Temperature: -5--50℃ Life: ≥1500 thousand times How to Use: 1. Engraved with "P" in the product is the intake cavity, "A", "B" are the working cavity, and "O1" and "O2" are the exhaust cavity. 2. The control power cord is connected to the junction box of the coil. 3. During debugging or power failure, manual operation can be used (manual switch "0" position is off, "1" position is on). 4. The inside and outside of the pipe must be cleaned during installation, and then the dust cap must be removed. 5. Suitable to disassemble and wash or add some lubricating oil if it has been stored for a long time or used for a long time or is not responsive. Model Port Size(approx. ) C D E F G H I J L K35D2H-6 G1/8in( M10 x 1) 153mm / 6in 14mm / 0.6in 10mm / 0.4in 28mm / 1.1in 112mm / 4.4in 130mm / 5.1in 136mm / 5.4in 9mm / 0.4in 56mm / 2.2in . Package List: 1 x Pneumatic Solenoid Valve1 x User Manual
