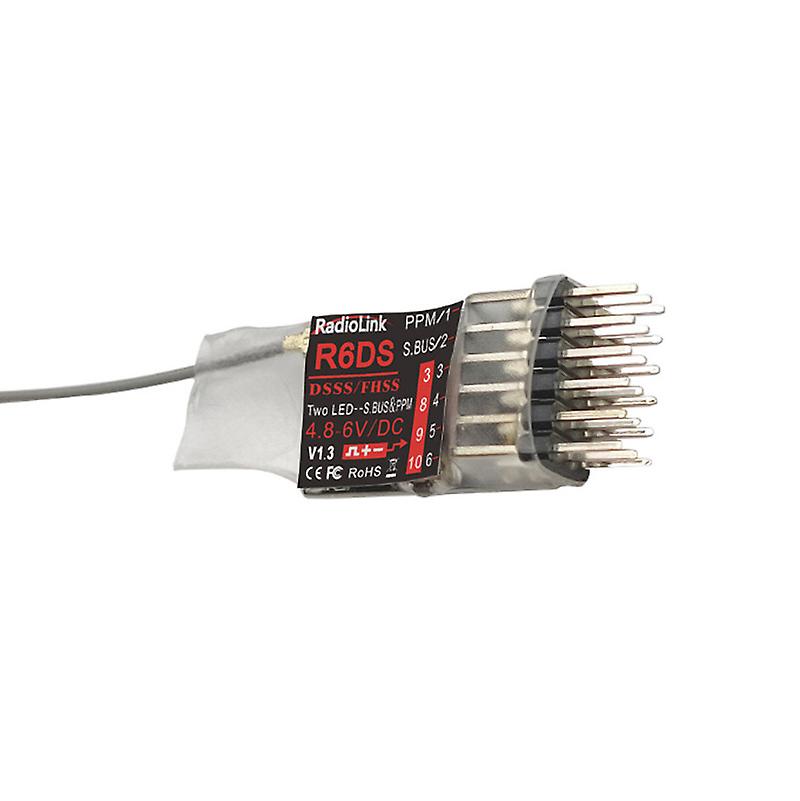

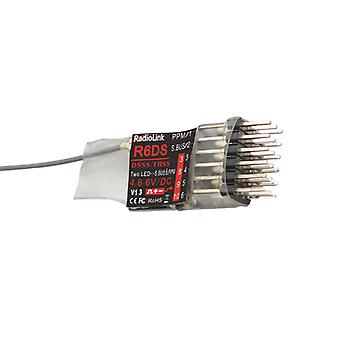

2.4G 6CH/10CH R6DS/R6DSM Receiver For Radiolink AT9 AT10 Transmitter Specification: R6DSM receiver SBUS signal mode,up to 10 channels can be supported. Maximum input voltage:6V Operating current:38-45mA(input voltage 5V) Size:15*13mm Weight:1g Remote control distance:600m in the air,actual flight distance varies with environment R6DS Receiver Signal output type,support SBUS,PPM and PWM three kinds of signal output at the same time Number of channels:6 PWM signal channels when the red indicator is on; SBUS/PPM&PWM signal mode when the blue indicator is on,expandable to 10 channels Maximum input voltage:6V Operating current:38-45mA(input voltage 5V) Dimensions L*W=25*15mm Weight:3.4g Resolution:industry's highest resolution 4096,0.25us per stage,high precision,so that all servos are stationary as water Remote control distance:600 meters in the air,the actual flight distance varies with the environment Matching code Each transmitter has an individual ID code. Before starting to use the device,the receiver must be paired with the transmitter code.After the code pairing is completed The ID code is then stored in the receiver and no further pairing is required. When you purchase a new R6DS receiver,you must Otherwise,the receiver will not work properly. 1.Place the transmitter and receiver close together. 2.Turn on the transmitter's power switch and power up the receiver. 3.Press the receiver's password button for more than 1 second,the red light will start flashing,indicating the start of the password. 4.When the red light of the receiver stops flashing and lights up,the code-pairing is complete. Package includes: 1*R6DS/R6DSM receiver(optional) Note: Dimensions and weight are measured manually and may be deviated,please refer to the actual product.
