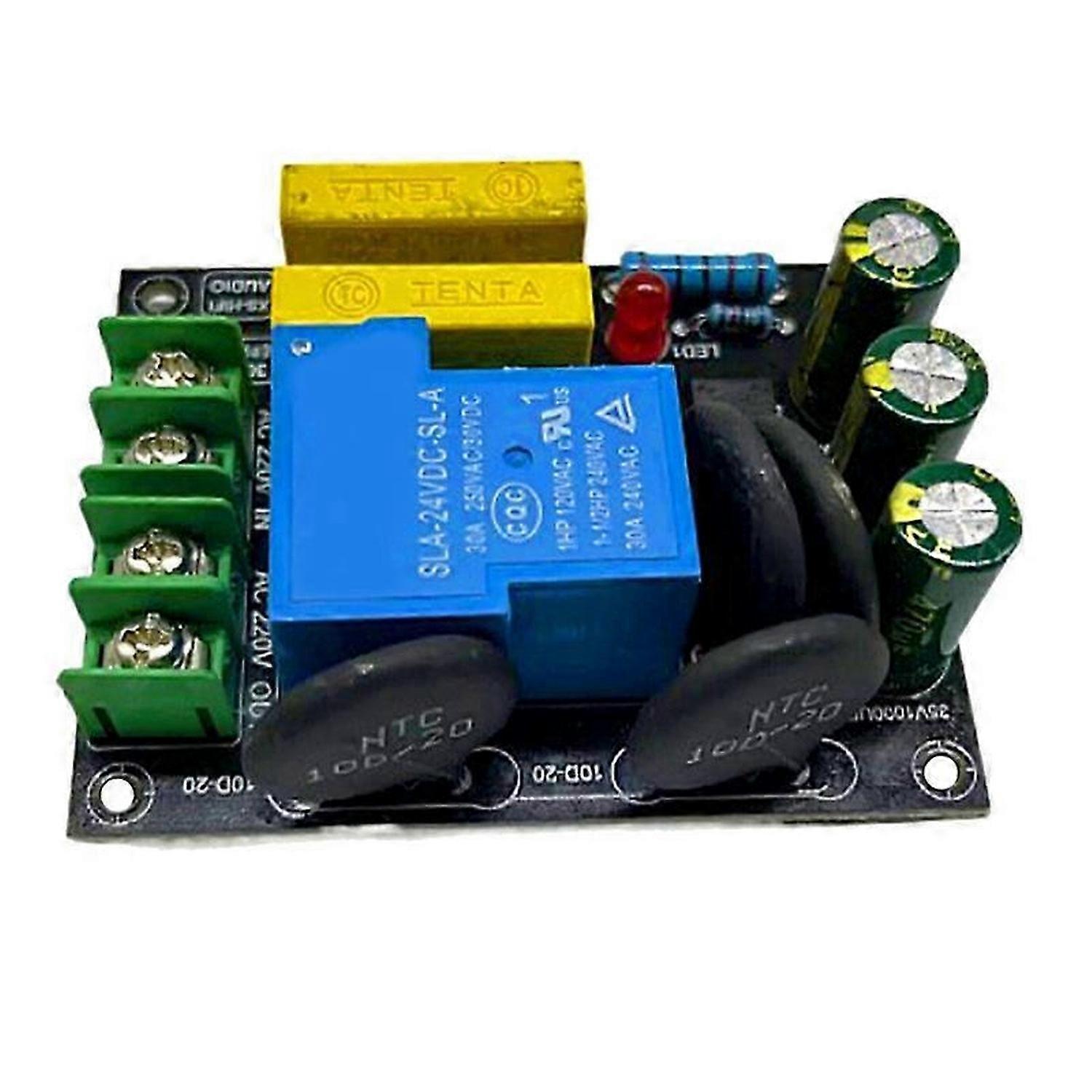

The high-power soft-start board uses FR4 fiber PCB, the size is 74mm X 57mm X 1.6mm, the height of the finished board is only 26MM, the circuit is original and new design, the relay short-circuits the power resistance after the power-on delay, and the power resistance adopts 4 pieces of NTC 10D-20 The thermistor with negative temperature coefficient can make the load voltage rise smoothly to the mains protect the rectifier bridge and the capacitor of the large pond, and prolong the service life of the electrical appliance. There is no problem with the actual measurement of the 2000W load. With 30A 6600W sealed relay The working principle of the circuit is that when the power is turned on - the power-on delay, the NTC is connected in series in the output load circuit to reduce and control the starting current (delay circuit control) ----- the short-circuit NTC is completed after the start, and the power is directly output. Complete the soft start process. (24V relay controls 220V voltage output) Ingenious circuit design, no need to connect a small former separately, soft start mainly protects the rectifier bridge, and the large pond capacitor, avoids the bridge blowing up and the breakdown capacitor, and prolongs its service life. The total current is controlled at 5A, to avoid the impact of the power grid when starting, and to prevent the total power supply from tripping. material: plastic<br><br>Color as shown<br><br>Package Contents: 1 x Soft Start Protection Board<br><br>Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
