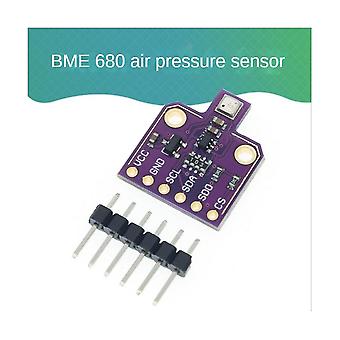

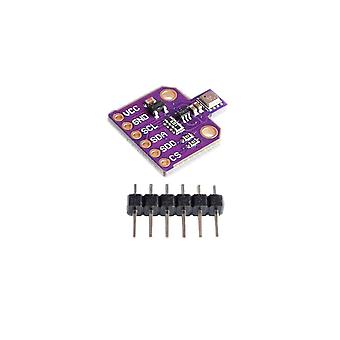

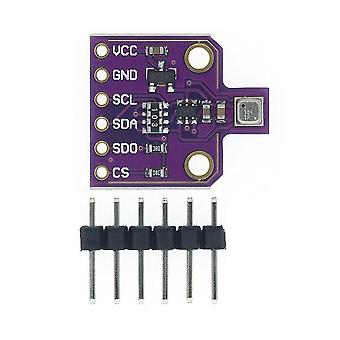

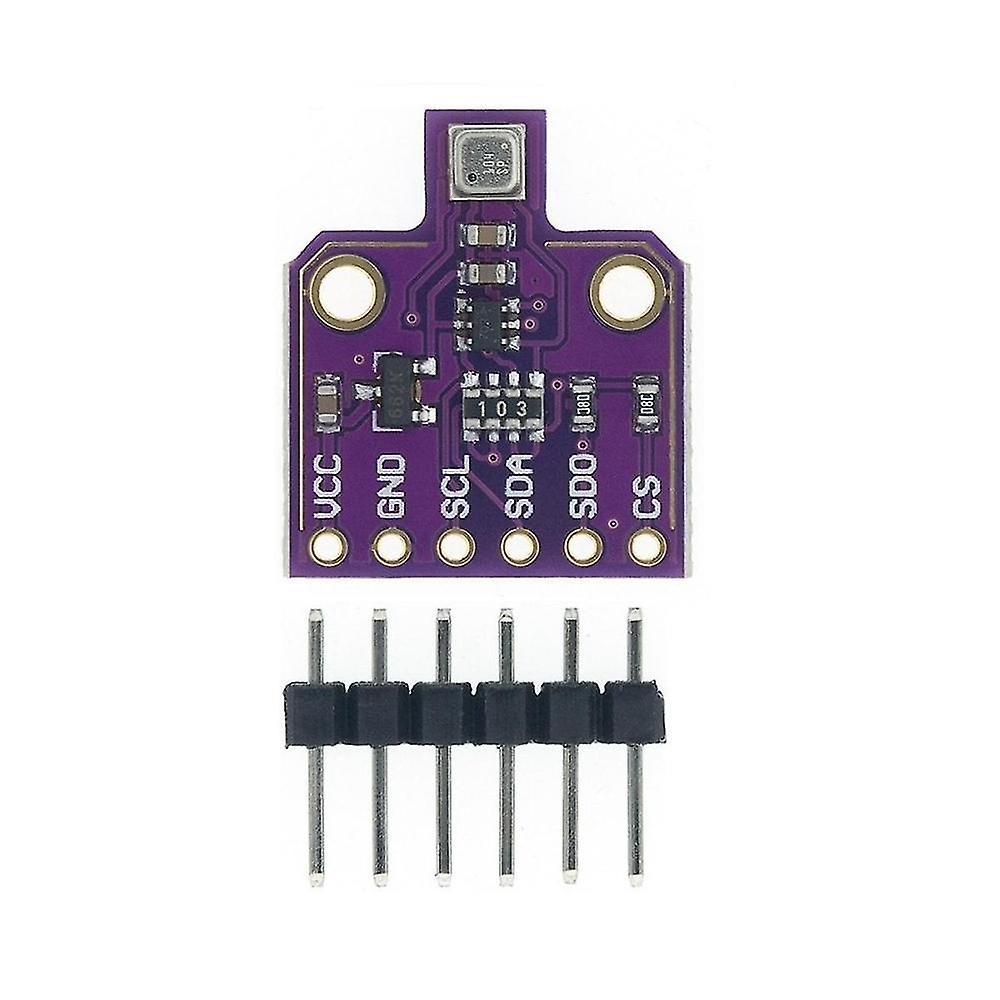

The BME680 is a digital 4-in-1 sensor with , humidity, pressure and temperature measurement based on proven sensing principles. BEM680 environmental sensor adopts I2C interface, onboard power supply regulator chip and level signal conversion chip, good compatibility, can be directly compatible with 3.3V and 5V , reserved SPI interface, convenient for expansion. Typical applications:Indoor air quality. Home automation and control. Internet of things. Weather forecast. GPS enhancement (e.g. time-to-first-fix improvement, dead reckoning, slope detection). Indoor navigation (change of floor detection, elevator detection). Outdoor navigation, and sports applications. Vertical indication (rise/sink speed) Devices:Handsets such as mobile phones, PCs, GPS devices. Wearables. Home weather stations. Smart watches. Navigation . Gaming, e.g. toys. IOT device Working : 1.7V3.6V Working temperature: -40 ~ + 85 Communication interface: 12C (up to 3.4 MHz) and SPI (3 and 4 wires, up to 10 MHz) Humidity, pressure and sensors can be enabled / disabled individually The current consumption at 1 Hz humidity and temperature is 2.1 LA, the current consumption at 1 Hz pressure and temperature is 3.1 LA, and the current consumption at 1 Hz humidity, pressure and temperature is 3.7 LA sensor parameters: response time (33-63%) Less than 1s (for new sensors) power consumption in ultra-low power mode Less than 0.1 mA output data processing direct indoor air quality (IAQ) output humidity sensor parameters: response time (0 -83%) ~ 8s Accuracy tolerance 396r .. Hysteresis 1.5% r.h. Pin definition vCC: Power supply is positive GND: ground SCL: 12C / clock line SDA: 12C / SP Data cable sDO: SPI data cable : SPI1 slave enable Colour:Purple Material:PCB Package Contents: 1 x BME680 Module 1 x pin Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the a little different from the real thing. The measurement allowed error is +/- 1-3cm.
