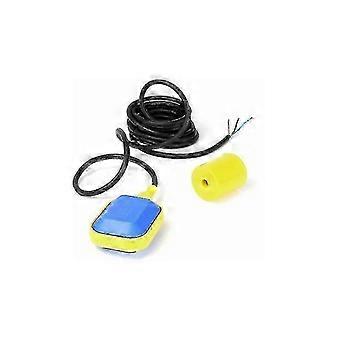

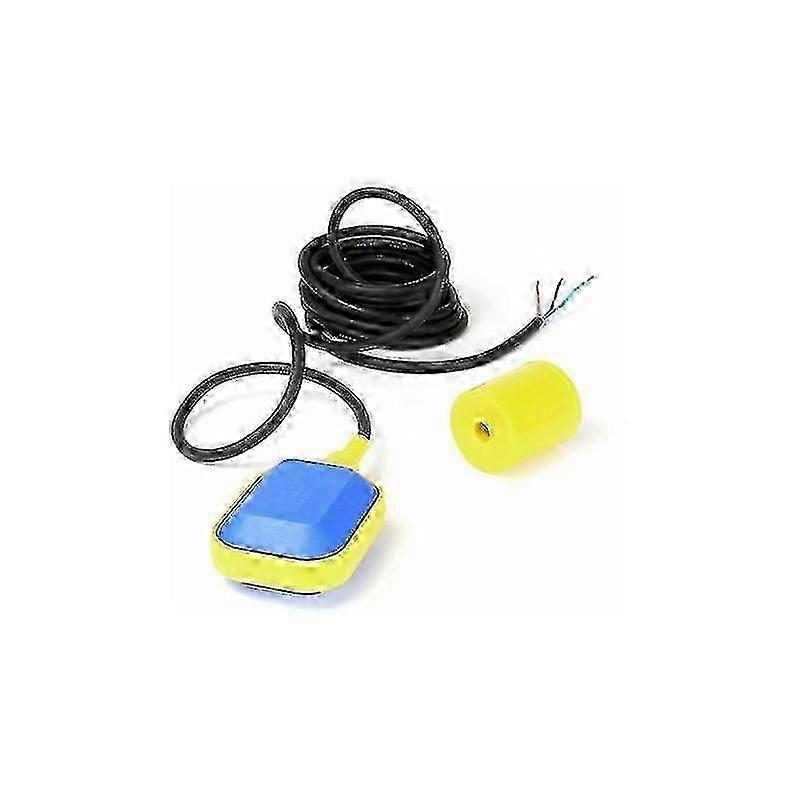

The float from WilTec is a hollow float that works on the principle of buoyancy. This hollow float is lifted and pushed upwards by the rising liquid until, having reached an angle of 50 to the horizontal, a switch-on is then triggered. The float can be attached by a screw on the side or if you have an open tank by placing it from above, on the liquid. The switching point can be defined very precisely thanks to the ballast weight with which it is fitted as standard. Suitable for almost all pumps. The float is very suitable for checking the fill level of any liquid that does not attack its material, regardless of the degree of fouling. You can use this float as a full or empty indicator, to control pumps or valves and valves or other alarm signals. If your pump has a power of more than 1, 1 kW you will need to place a usual power connector or relay, sold on the market, upstream. A 380/400V three-phase pump can be operated with a 380V power connector. 10m 250V 16A Float switch for submerged pump Reference50593RegistrierungsnummerWEEE DE45283704number of packages1Dimensions 80 x 159 x 43 mmMaterialPVCApplication / Information / FeaturesFalls Ihre Pumpe mehr als 1.1 kW Leistung hat, sollten Sie ein handelsbliches Leistungsschtz oder ein entsprechendes Leistungsrelais vorschalten. Mit einem 380V Leistungsschtz sind auch 380/400V Dreiphasen-Pumpen steuerbar.SpecificationsMax. switching angle. +/- 50, Current fluctuations allowed +/- 10%, Max. 16AProtection classIP 68Input voltage< td>230VAC ~50HzStart (float)Angle +/- 50< td>temperature range from0-50CExtras/Features3 x 0 cross section, 5mmProductFloat SwitchPlugWithout Connector< /td>Filter mediumFresh/clear/well/waste waterWeight [kg]< /td>1.4000Package: Height in mm160Package: Length in mm240Package: Width in mm100AvailabilityDelivery time up to 7 days* NavigationPaketNote: The data are all manual measurement, please allow error of 1-3cm; due to the difference in light and display, there would be a certain color difference, please refer to the actual object received.
